Engineering Probiotic Escherichia coli Nissle 1917 for 2′-Fucosyllactose and 3-Fucosyllactose Biosynthesis

Human milk oligosaccharides (HMOs) are unconjugated glycans that shape interactions among diet, the infant microbiota, intestinal epithelia, and immunity. Most HMOs contain lactose at the reducing end and are extended or decorated with fucose or sialic acid. Among the fucosylated structures, 2′-fucosyllactose (2′-FL) and its positional isomer 3-fucosyllactose (3-FL) have emerged as prominent targets for both nutritional research and industrial biomanufacturing. They share the same precursors, specifically lactose and GDP-L-fucose, but require distinct terminal fucosyltransferases. Therefore, 2′-FL and 3-FL serve as a highly useful pair for probing which metabolic limitations are inherent to the common donor pathway and which are strictly product specific [1,2,3,4].

Currently, HMO production is no longer restricted to conventional Escherichia coli hosts. Engineered plants have provided a photosynthetic route to multiple HMO structures, while Corynebacterium glutamicum and Bacillus subtilis have been developed as alternative microbial hosts for de novo 2′-FL synthesis. In parallel, synthetic biology is expanding toward sialylated and more structurally complex HMOs [5,6,7,8]. The diversification of these production platforms broadens the evaluation criteria for an optimal HMO cell factory. While volumetric titer remains a primary metric, factors such as feedstock utilization, genetic stability, product selectivity, host safety, and compatibility with downstream purification increasingly determine the practical value of the platform.

In E. coli, the production of 2′-FL has been significantly improved through strategies that prevent lactose degradation, reinforce the de novo or salvage GDP-L-fucose pathways, balance cofactor and precursor supplies, integrate pathway genes into the chromosome, and screen for highly active α1,2-fucosyltransferases [9,10,11,12,13,14,15]. While this modular logic has also been applied to 3-FL synthesis, α1,3-fucosyltransferase activity frequently remains a rate limiting bottleneck. FutM2 and other α1,3-fucosyltransferases have therefore been subjected to enzyme engineering, copy-number optimization, fusion strategies, and plasmid-free pathway construction [16,17,18,19,20]. Recent HMO biosynthesis studies have continued to improve productivity, identify new fucosyltransferases, and diversify carbon-source utilization [21,22,23].

Notably, most high performing fucosyllactose strains to date are derived from laboratory lineages such as E. coli BL21(DE3) or MG1655. By contrast, E. coli Nissle 1917 (EcN) is a well-characterized probiotic with a long history of human use [24]. Beyond its probiotic status, this strain differs from conventional laboratory hosts in its native K5 capsular polysaccharide biosynthesis and nutrient specific Csr control of central carbon metabolism [25,26]. EcN is also an established chassis for living diagnostics and therapeutics, including engineered strains that sense intestinal inflammation or remove disease-associated metabolites [27,28]. Recent work on navigable genome engineering and biocontainment further illustrates how probiotic chassis can be developed systematically and safely [29,30]. This host is therefore scientifically interesting for HMO synthesis because it tests pathway portability in a physiologically distinct background.

In this study, we engineered EcN as a parallel platform for 2′-FL and 3-FL production by coupling a shared de novo GDP-L-fucose module with either WbgL or FutM2 terminal fucosylation. We systematically evaluated effective metabolic interventions and determined the cross-pathway transferability of optimized culture conditions. This design enables a direct comparison between shared host constraints and product specific limitations within the exact same probiotic chassis.

The bacterial strains and plasmids used in this study are listed in Table 1. E. coli Nissle 1917 (EcN) was the parental probiotic chassis, E. coli MG1655 was used for cloning or as a source of pathway genes, and E. coli S17-1 served as the conjugative donor for introducing suicide and genome-editing plasmids into EcN. Oligonucleotides were synthesized by BGI Genomics (Beijing, China) and are listed in Table S1 and Table S2.

The codon-optimized α1,2-fucosyltransferase gene wbgL from E. coli O126 (GenBank AY849806.1) was synthesized by BGI Genomics and amplified with primers wbgL-F/R. The rcsA and rcsB genes were amplified from E. coli MG1655 with primers rcsA-F/R and rcsB-F/R, respectively. The rcsA and rcsB genes encode positive transcriptional regulators of the colanic acid operon, and their co-overexpression activates the endogenous promoter driving the manC-manB and gmd-wcaG cluster, thereby reinforcing metabolic flux through the GDP-L-fucose biosynthetic pathway. These three inserts and the pETDuet-1 backbone amplified with V3-F/R were joined using a Gibson Assembly Kit (Vazyme Biotech, Nanjing, China), placing rcsA-rcsB in MCS1 and wbgL in MCS2 to generate pET-ABW. For the 3-FL module, a codon-optimized futM2 gene from Bacteroides gallinaceum (GenBank WP_204430034.1) was synthesized and amplified with FutM2-F/R. The pET-ABW-derived backbone was amplified with V5-F/R, and the two fragments were assembled to replace wbgL with futM2, generating pET-ABF. The manC-manB and gmd-wcaG clusters were inserted into MCS1 and MCS2 of pRSFDuet-1, respectively, to generate pRSF-CBGW. All Gibson assemblies were performed according to the manufacturer’s instructions, and the recombinant plasmids were verified by DNA sequencing.

Because wild-type EcN lacks a T7 RNA polymerase expression system, the DE3 fragment was integrated into its chromosome by pRE112-mediated homologous recombination, replacing poxB and generating EcN(DE3). The suicide plasmid was transferred from E. coli S17-1 by conjugation. The lacZ and wcaJ genes were then inactivated by introducing premature stop codons using a CRISPR/nCas9 cytosine base-editing system, thereby generating the basal chassis 7ZJ. Inactivation of lacZ was intended to preserve lactose, whereas inactivation of wcaJ was intended to reduce diversion of GDP-L-fucose into colanic-acid biosynthesis.

For additional 2′-FL pathway engineering, the lldD coding region in 7ZJ was replaced with a P_J23119-wbgL cassette to generate 7ZJW. The production strain 7ZJW-2FL retained pET-ABW, so chromosomal wbgL increased total gene dosage rather than replacing plasmid expression. The native manC promoter was subsequently replaced with the stronger P1 promoter to generate 7ZJWP. Finally, nudD, which encodes a GDP-mannose hydrolase, was inactivated by base editing to generate 7ZJWPN and reduce loss of the GDP-L-fucose precursor GDP-mannose. Chromosomal replacements were mediated with pRE112 derivatives. All engineered loci were screened by colony PCR and verified by DNA sequencing.

LB, defined medium (DM), minimal medium (MM), mineral salts (MS), M9 medium, and R medium were evaluated. LB contained 10 g/L tryptone, 5 g/L yeast extract, and 10 g/L NaCl. DM contained 20 g/L glycerol, 13.5 g/L KH₂PO₄, 4.0 g/L (NH₄)₂HPO₄, 1.7 g/L citric acid, 1.4 g/L MgSO₄·7H₂O, and 10 mL/L trace-element solution. The trace-element solution contained 10 g/L Fe(III) citrate, 2.25 g/L ZnSO₄·7H₂O, 1.0 g/L CuSO₄·5H₂O, 0.35 g/L MnSO₄·H₂O, 0.23 g/L Na₂B₄O₇·10H₂O, 0.11 g/L (NH₄)₆Mo₇O₂₄, and 2.0 g/L CaCl₂·2H₂O. MM, MS, M9, and R media were prepared as previously described [31,32,33].

The pH of each basal medium was adjusted to 6.8 before autoclaving at 115 °C for 30 min. When required, antibiotics were used at final concentrations of 100 μg/mL ampicillin, 50 μg/mL kanamycin, 25 μg/mL chloramphenicol, and 50 μg/mL spectinomycin. To balance enzyme expression with cellular metabolic burden, induction temperatures (25 °C vs. 30 °C) and IPTG concentrations (0.1–2.0 mM) were evaluated. Baffled flasks were used for high-oxygen conditions (H), whereas round-bottom flasks were used for low-oxygen conditions (L).

For standard 2′-FL or 3-FL production, a 4-mL LB seed culture was grown at 37 °C and 200 rpm for 12 h. The production culture was inoculated at 2% (v/v) into 100 mL medium in a 500-mL Erlenmeyer flask. At OD₆₀₀ 0.6–0.8, IPTG and lactose were added, and cultivation continued at 25 °C and 200 rpm for 72 h. For the yeast-extract comparison, the glycerol concentration was increased to 30 g/L, and cultures were prepared either without supplementation or with 5 g/L yeast extract; samples were collected at 0, 24, 48, and 72 h.

Cell growth was monitored spectrophotometrically as OD₆₀₀. For extracellular metabolite analysis, 1 mL of fermentation broth was centrifuged at 12,000 rpm for 10 min, and the supernatant was passed through a 0.22-μm membrane filter. Concentrations of 2′-FL, 3-FL, lactose, and glycerol were determined using a Shimadzu LC-20A HPLC system (Shimadzu, Kyoto, Japan) fitted with a Bio-Rad Aminex HPX-87H organic-acid column. The mobile phase was 5 mM H₂SO₄ at 0.6 mL/min; the column was maintained at 55 °C, and the injection volume was 10 μL. All experiments were performed in triplicate, and data are presented as mean ± standard deviation (SD).

The engineering design connected glycerol metabolism to the de novo GDP-L-fucose pathway through ManA, ManB, ManC, Gmd, and WcaG (Figure 1). Inactivation of lacZ preserved lactose as the acceptor, while wcaJ inactivation was intended to reduce competing precursor consumption. The pRSF-CBGW donor module was paired with WbgL for α1,2-fucosylation or FutM2 for α1,3-fucosylation (Table 1). Both strains 7ZJ-2FL and 7ZJ-3FL produced the product assigned in the supplied chromatographic records, showing that EcN supported donor formation and that exchanging the terminal enzyme switched the fucosyllactose regioisomer.

This outcome serves as a fundamental proof of concept for transferring the HMO pathway into a probiotic chassis. Although the individual pathway modules have been implemented previously in laboratory lineages of E. coli [4,9,10,11,12,13,14,15], their robust operation in EcN cannot be automatically assumed. Inherent variations in promoter output, plasmid maintenance, envelope physiology, and global metabolic regulation exist among distinct strain backgrounds. Utilizing a shared host and donor module for both target molecules establishes a controlled internal comparator. Consequently, performance discrepancies observed between the WbgL and FutM2 systems are unlikely to stem from variations in upstream donor supply and are instead attributable to the terminal module or its specific interaction with host physiology.

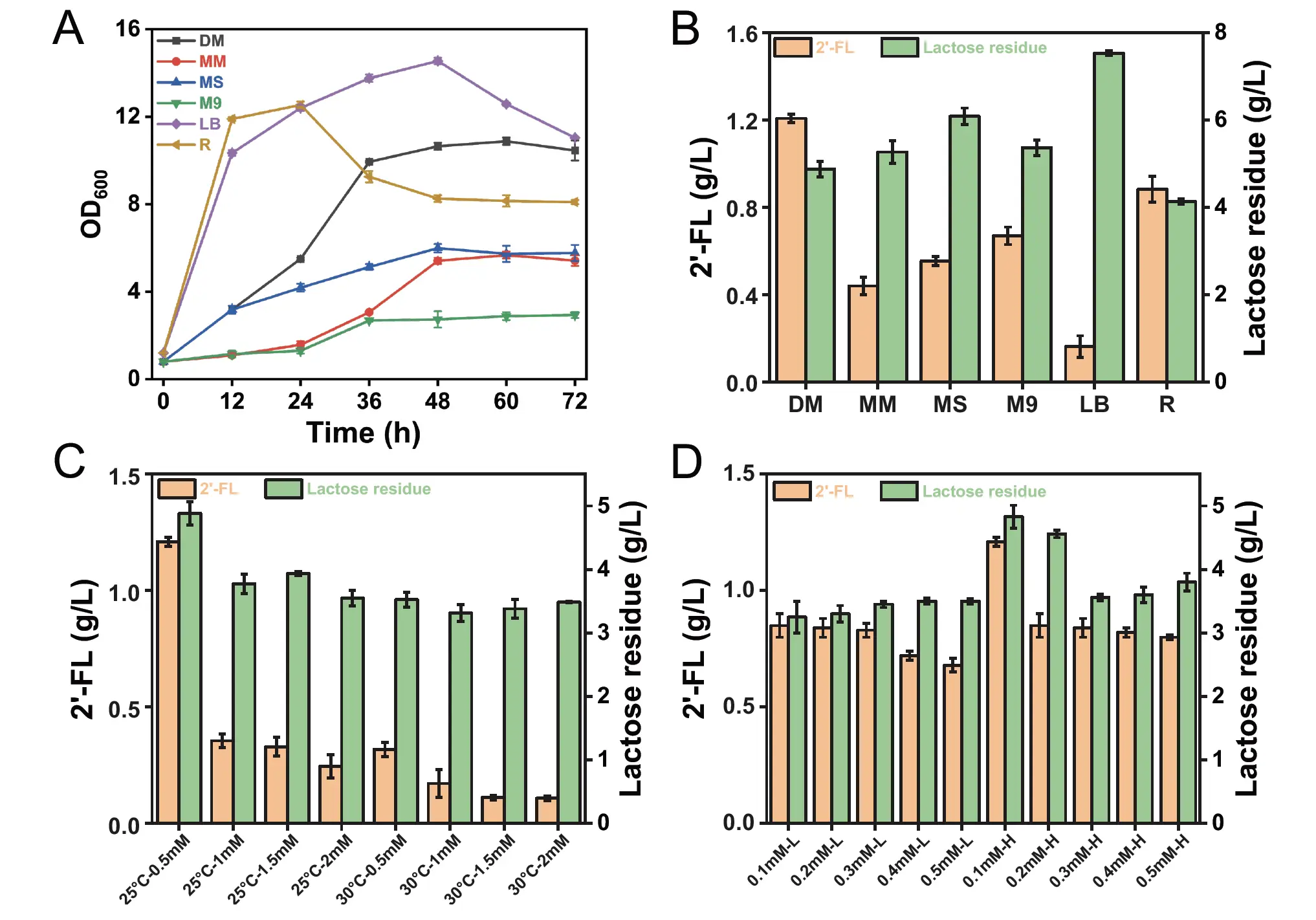

Cultivation across six distinct media revealed an inverse relationship between cell growth and target product accumulation (Figure 2A). Rich LB medium yielded the highest endpoint biomass, reaching OD₆₀₀ of approximately 14.5 at 48 h. In contrast, defined medium (DM) yielded a lower cell density, leveling off near an OD₆₀₀ 10–11 at 36 h. Product formation did not follow this biomass ranking (Figure 2B). DM supported the highest 2′-FL concentration at approximately 1.21 g/L, whereas LB produced only 0.16 g/L while retaining the highest concentration of unreacted lactose. Intermediate titers of 0.44, 0.56, 0.67, and 0.88 g/L were observed in MM, MS, M9, and R media, respectively. DM was therefore identified as the optimal medium because it maximized product concentration rather than total cell mass.

This observed decoupling between biomass formation and product synthesis highlights a fundamental trade off in resource allocation. In LB media, abundant exogenous amino acids and peptide precursors likely relieve anabolic constraints and drive rapid carbon utilization primarily toward building structural macromolecules. We hypothesize that this accelerated cell proliferation competes with heterologous pathway expression by reducing the metabolic availability of cofactors and precursors, which are necessary for GDP-L-fucose synthesis. Furthermore, the elevated residual lactose observed in LB indicates that lactose internalization or downstream glycosylation becomes kinetically uncoupled from rapid growth. Conversely, defined minimal media impose controlled nutrient constraints that moderate specific growth rates. This moderated growth velocity may establish a balanced intracellular regime in which intermediate glycerol flux can be redirected to downstream nucleotide sugars without being cannibalized by rapid biomass synthesis. These findings confirm that maximizing cell density alone does not linearly correlate with high oligosaccharide titers, and optimizing product formation likely requires a controlled growth dynamic to balance energy allocation.

To optimize the T7 expression cascade, we evaluated induction temperatures of 25 °C and 30 °C across an initial IPTG gradient from 0.5 to 2.0 mM (Figure 2C), followed by a finer screen from 0.1 to 0.5 mM at 25 °C (Figure 2D). The combination of 25 °C and 0.5 mM IPTG was selected for subsequent experiments because it produced the highest observed 2′-FL titer of approximately 1.21 g/L. Elevating the temperature to 30 °C or increasing the IPTG concentration beyond 0.5 mM led to a decline in 2′-FL accumulation. We present this lower temperature and moderate induction strategy as a plausible approach to balance enzyme expression against excessive metabolic burden. Additionally, varying dissolved oxygen levels during shake flask cultivation had no significant impact on the product titer when tested across 0.1 to 0.5 mM IPTG at 25 °C.

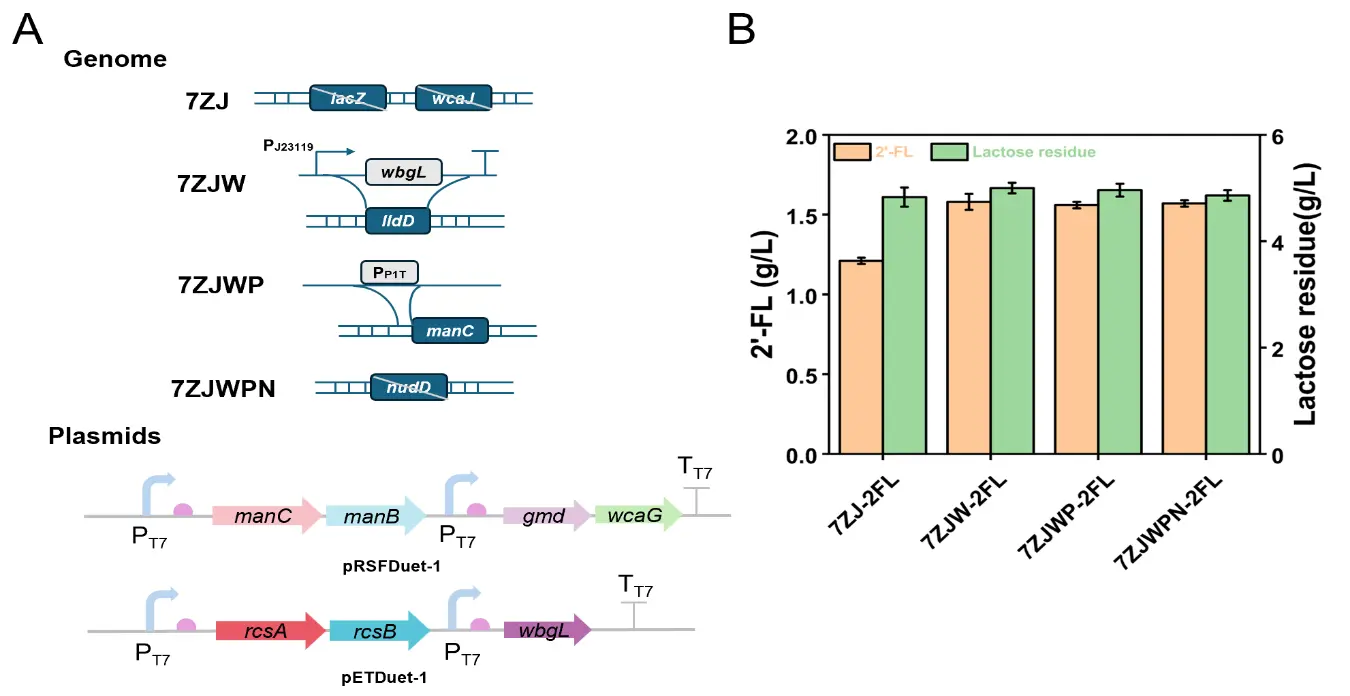

The baseline strain 7ZJ-2FL achieved a 2′-FL titer of approximately 1.21 g/L. Integration of a single chromosomal copy of wbgL driven by the PJ23119 promoter (strain 7ZJW-2FL) increased the titer to approximately 1.58 g/L, representing a descriptive gain of roughly 31% (Figure 3) with minimal change in residual lactose. Subsequent genomic modifications, including replacing the native manC promoter with P1T and inactivating nudD, resulted in titers of approximately 1.56 and 1.57 g/L, respectively. These subsequent modifications indicate a clear performance plateau rather than further enhancement.

The initial gain in titer indicates that alpha 1,2 fucosyltransferase capacity was a primary bottleneck in the baseline strain and that increasing terminal enzyme dosage relieved part of this constraint. This finding aligns with previous studies emphasizing the rate limiting nature of fucosyltransferase activity and solubility in heterologous synthesis systems [9,13,21,22]. However, because strain 7ZJW-2FL retained the expression plasmid, this experiment demonstrates a positive dosage response rather than the complete substitution of plasmid-based expression. The lack of further performance gains following manC promoter replacement or nudD deletion suggests that GDP-mannose synthesis and hydrolysis were not limiting under the evaluated conditions. It is plausible that metabolic flux became constrained by downstream reactions. The system may also be limited by intracellular cofactor regeneration, specifically the availability of GTP and NADPH. Furthermore, cumulative genomic alterations might have imposed an unanticipated cellular burden. We emphasize that these potential mechanisms remain working hypotheses. Direct quantification of intracellular nucleotide sugar pools and specific enzyme activities will be required to pinpoint the exact rate limiting steps under these conditions.

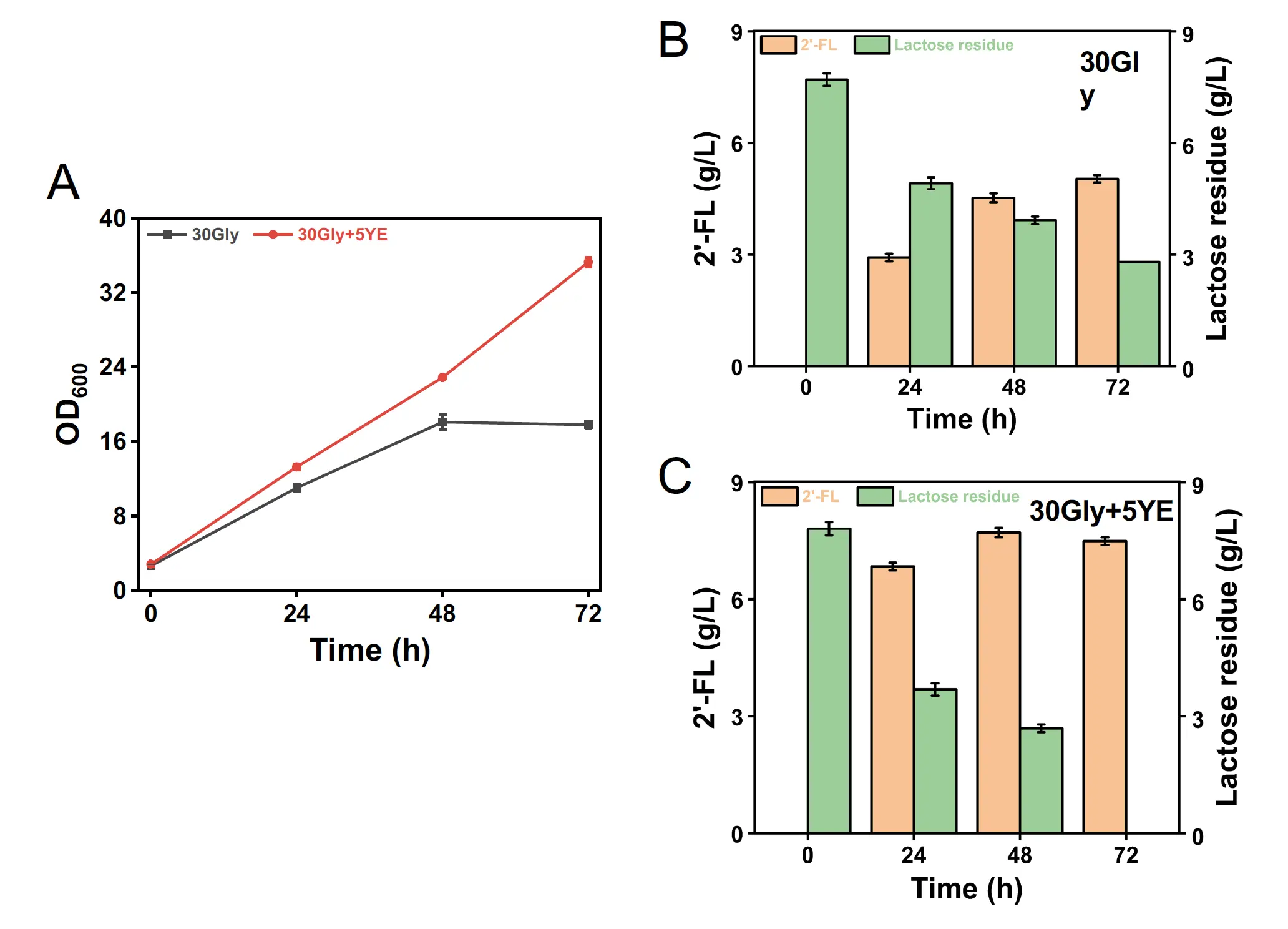

Supplementing a 30 g/L glycerol culture with 5 g/L yeast extract substantially improved both biomass accumulation and 2′-FL production in strain 7ZJW-2FL (Figure 4). Without yeast extract addition, OD₆₀₀ reached a peak 18.08, with 2′-FL concentrations progressing from 2.92 g/L at 24 h to 4.53 g/L at 48 h and 5.03 g/L at 72 h. With yeast extract supplementation, OD₆₀₀ increased to 22.88 at 48 h and 35.28 at 72 h, and 2′-FL titers reached 6.84 g/L at 24 h, 7.71 g/L at 48 h, and 7.50 g/L at 72 h. At the 48 h, the product titer in the supplemented culture was approximately 70% higher than in the control, accompanied by accelerated lactose consumption.

The beneficial impact of yeast extract likely stems from the supply of complex amino acids, vitamins, and nucleosides. These nutrients may boost GTP and NADPH availability, and support overall energy regeneration for the multi enzyme pathway. Crucially, while biomass continued to accumulate between 48 and 72 h, net 2′-FL accumulation plateaued. This identifies 48 h as the optimal operational harvest point, beyond which additional cell growth fails to yield higher recoverable product. These observations suggest that a two stage or controlled fed-batch fermentation strategy, designed to decouple growth from production while maintaining adequate lactose levels, could further optimize process performance.

The value of approximately 7.71 g/L represents a substantial achievement for an EcN shake flask proof of concept. Engineered laboratory strains and alternative hosts can reach higher titers under highly optimized fed batch conditions [12,19,20,21,22,23]. However, cross study comparisons are frequently confounded by host background, vessel scale, carbon source, analytical methods, and sampling time. The defensible conclusion here is that EcN is highly responsive to process improvement, establishing its viability as an alternative manufacturing chassis.

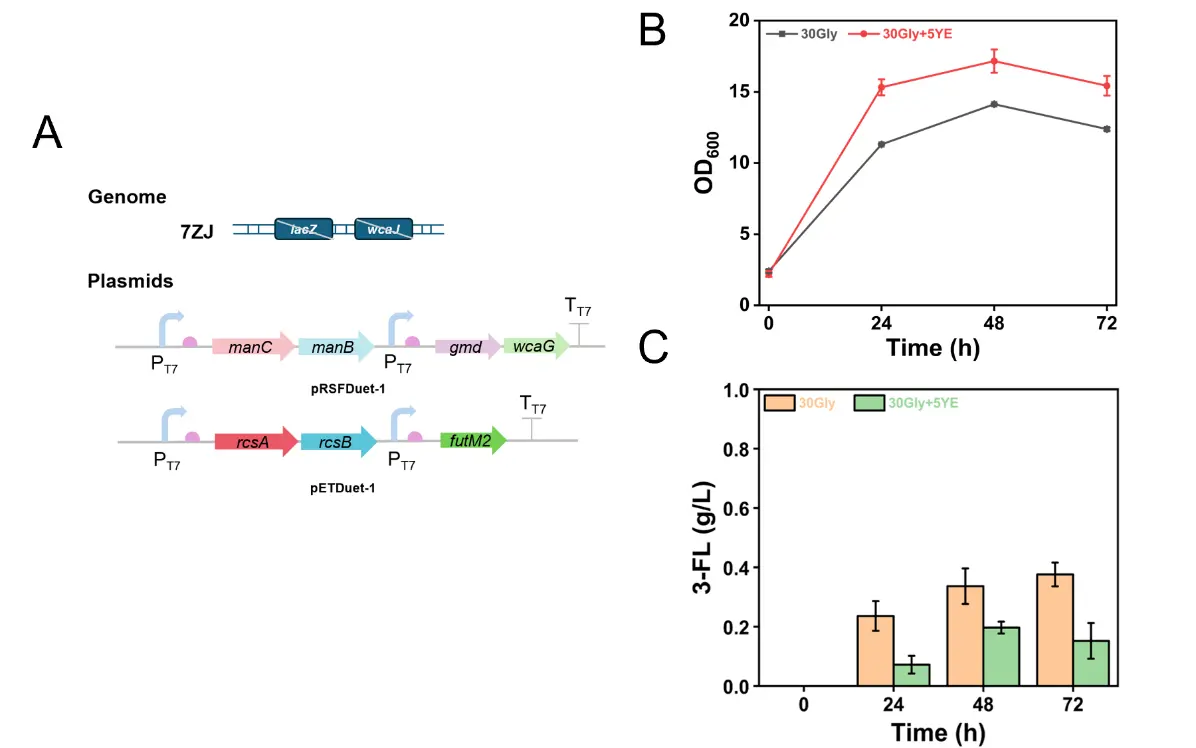

Substituting FutM2 for WbgL yielded strain 7ZJ-3FL, which retains the parental 7ZJ genetic background and the pRSF-CBGW donor plasmid (Figure 5A). Without yeast extract addition, 3-FL accumulated steadily, reaching approximately 0.24, 0.34, and 0.38 g/L at 24 h, 48 h, and 72 h, respectively. Unexpectedly, supplementation with 5 g/L yeast extract suppressed 3-FL production despite promoting cell growth. Under supplemented conditions, 3-FL titers reached only 0.07, 0.20, and 0.15 g/L at corresponding time points, representing a 60% reduction at 72 h relative to the control.

This divergent response highlights fundamental biosynthetic and physiological distinctions between the two isomer pathways. Although both strains share an identical host background and donor plasmid, this shared design does not definitively prove that upstream donor supply is nonlimiting in the 3-FL producing strain. We hypothesize that several distinct mechanisms could drive this efficiency gap. First, the kinetic efficiency and substrate affinity toward lactose differ substantially between the two glycosyltransferases. Bacterial α1,3-fucosyltransferases typically exhibit significantly lower catalytic turnover and poorer substrate affinity compared to well established alpha 1,2 fucosyltransferases [16,18,20]. Second, heterologous α1,3-fucosyltransferases are prone to misfolding and inclusion body formation during overexpression in E. coli, which restricts the pool of active enzyme [17,19]. Third, nutrient supplementation with yeast extract promotes rapid cell division, which likely aggravates the translational burden and aggregation of FutM2 while channeling central metabolites toward cellular biomass rather than terminal fucosylation. Direct measurements of intracellular donor availability, along with cofactor pools and soluble enzyme fractions, are required to fully distinguish these testable possibilities.

Conventional E. coli strains have been extensively optimized for high-titer HMO production, whereas C. glutamicum and B. subtilis provide robust alternative production backgrounds [6,7,12,16,21,23]. Accordingly, EcN is not positioned here primarily as a chassis for maximizing shake flask titer. Its distinguishing value lies in combining complex HMO biosynthesis with a well characterized probiotic background [24,27,28]. Any future host associated application nevertheless, remains strictly conditional on resolving intestinal substrate availability. In this context, the present study establishes a controlled dual product platform and reveals product specific responses to metabolic interventions, solely validating in vitro production capacity. Because the engineered pathway relies entirely on exogenous lactose and a sufficient carbon supply, intestinal fucosyllactose production cannot be inferred from the present culture experiments. Practical gut deployment would require demonstrating adequate in vivo substrate availability or providing a compatible substrate delivery strategy.

This study demonstrates the functional expression of a complete de novo GDP-L-fucose pathway in E. coli Nissle 1917, enabling the targeted synthesis of both 2′-FL and 3-FL through pairing with WbgL or FutM2. Increasing wbgL gene dosage improved 2′-FL accumulation, while nutrient supplementation with yeast extract enhanced 2′-FL titers to approximately 7.71 g/L but significantly reduced 3-FL production. These contrasting outcomes demonstrate that closely related fucosyllactose systems require individualized process optimization. Overall, this work establishes EcN as a feasible in vitro chassis for the production of fucosyllactose under defined culture conditions. Although its distinct probiotic background differentiates this host from conventional production strains, translating this platform toward therapeutic application will strictly depend on resolving intestinal substrate availability, ensuring genetic stability, and implementing rigorous biocontainment.
