Detailed Analyses of Light Intensity Dependence to Uncover Multielectron Oxygen-Reduction Mechanism by Platinum-Loaded Tungsten(VI) Oxide

In the field of photocatalysis, one of the most important objectives is to develop a fundamental understanding of the parameter(s) that govern the activity of a photocatalyst, i.e., photocatalytic activity. Therefore, to the authors’ knowledge, all recent articles on photocatalysis discussed photocatalytic activity. The term “photocatalytic activity” is generally used to describe the ability of a photocatalyst to drive a specific photocatalytic reaction under defined conditions. In practice, however, such ability can only be evaluated in a relative manner by measuring the rate of photocatalytic reaction. Even when photocatalytic activity is expressed in terms of quantum efficiency, the estimation must be made based on the reaction rate [1].

From the viewpoint of physical chemistry, the observed reaction rate is influenced by the kinetic parameters, e.g., photon flux and the amount of adsorbed substrates, as long as thermodynamic parameters, e.g., conduction-band bottom/valence-band top energies of the photocatalyst and the standard electrode potential of a substrate, are satisfied. In other words, when the observed reaction rate is negligible or rather small, both kinetic and thermodynamic parameters need to be carefully examined. Consequently, in most cases, detailed kinetic analyses are imperative to fundamental understanding, although not all the studies on photocatalysis reported detailed kinetic analyses [2]. Late Professor David Ollis was a pioneer in the development of kinetic analysis on photocatalytic reactions, particularly for the practical applications such as environmental purification and decomposition of organic pollutants, from an engineering perspective [3,4,5].

Titanium(IV) oxide (titania) is currently the most widely used photocatalyst owing to its low cost, non-toxicity, and ease of availability [1]. However, the wide bandgap of ca. 3.2 eV of titania requires ultraviolet excitation, resulting in poor utilization of broad-spectrum light sources such as sunlight and indoor lighting. Alternatively, tungsten(VI) oxide (WO₃) has a narrower bandgap of ca. 2.5 eV, enabling absorption up to ca, 470 nm, and has thus attracted attention as a visible light-responsive photocatalyst [6]. Nevertheless, pristine WO₃ exhibits negligible activity for the degradation of organic compounds in the presence of oxygen, i.e., under aerobic conditions. This inactivity is attributed to the relatively low conduction band-bottom energy of WO₃ (+0.50 V vs. SHE), which is a more cathodic potential than the one-electron reduction potential of oxygen, resulting in insufficient driving force for the reduction reaction of oxygen. In contrast, it has been reported that platinum-loaded WO₃ (Pt/WO₃) exhibits significantly enhanced photocatalytic activity for decomposition of organic compounds under visible-light irradiation [6]. This enhancement is assigned to multielectron oxygen reduction reactions, indicating that the photocatalytic activity is governed by the kinetics of the multielectron transfer process. However, the detailed role and quantitative contribution of multielectron transfer processes to govern the photocatalytic activity of Pt/WO₃ remain unclear. On the other hand, for the reaction mechanism of oxygen reduction reactions, titania has been extensively studied as a model photocatalyst [7,8]. Photocatalytic oxygen reduction by pristine titania often proceeds via one-electron pathways, leading to the formation of superoxide (O₂•⁻) and subsequent peroxide species [9,10]. For noble-metal loaded titania, for example, Pt nanoparticles serve as effective electron-accepting sites, promoting charge separation and facilitating oxygen reduction through one-electron or multistep pathways, including the formation of O₂•⁻ and peroxide species [11,12]. Those studies have primarily focused on activity enhancement and proposed reaction pathways based on intermediate detection or qualitative arguments. In contrast, we have demonstrated that light-intensity dependence (LID) analysis can serve as a powerful kinetic methodology to elucidate multielectron reaction mechanisms and cocatalyst functions, even in the absence of direct in situ detection of reaction intermediates [13,14,15]. In this study, we investigate the involvement of multielectron oxygen reduction and positive-hole oxidation and clarify the role of Pt as a cocatalyst by analyzing the LID of the reaction rate on Pt/WO₃ photocatalysts.

Commercial WO₃ powder was purchased from Kojundo Chemical Laboratory (Saitama, Japan) and fractionated according to a previously reported method [6], since the as-received WO₃ contained a broad distribution of particle sizes. Briefly, a 10-g portion of WO₃ powder was dispersed in 100 mL of ultrapure water using an ultrasonic homogenizer for 10 min. The resulting suspension was centrifuged at 1000 rpm for 10 min, and ca. 80% of the supernatant containing smaller particles was carefully collected. Ultrapure water was added to the remaining sediment containing larger particles to restore the total volume to 100 mL, followed by ultrasonic dispersion and centrifugation under the same conditions. This procedure was repeated five times to collect approximately 400 mL of combined supernatant enriched with small particles. The collected supernatant was subsequently centrifuged at 10,000 rpm for 15 min and dried at 393 K for 12 h. The obtained sample consisted of δ-phase WO₃ with a specific surface area of ca. 9.7 m²·g⁻¹.

Samples of Pt/WO₃ were prepared via a photodeposition method. The fractionated WO₃ (0.6 g) was dispersed in 25 mL of ultrapure water using an ultrasonic homogenizer for 10 min. An aqueous solution of chloroplatinic acid (H₂PtCl₆, Wako Pure Chemical, Osaka, Japan) was then added, followed by further ultrasonic dispersion for 10 min. A 300-W xenon lamp (Cermax LX-300F, Excelitas, Pittsburgh, PA, USA) equipped with a cutoff filter (L-42, Asahi Spectra, Tokyo, Japan) was used for light irradiation, excluding UV light below 400 nm to ensure visible-light irradiation only. After irradiation for 2 h, 2.9 mL of methanol (Wako Pure Chemical) was added as a sacrificial reagent, and the irradiation was continued for an additional 4 h. The resulting suspension was then centrifuged at 4500 rpm for 15 min, the supernatant was removed, and the obtained precipitate was dried at 343 K for 12 h.

The Pt surface area was measured by carbon monoxide (CO)-pulse adsorption using a catalyst analyzer (BEL-CAT, MicrotracBEL Corp., Osaka, Japan). Prior to the measurement, the samples were heated to 343 K at 7 K·min⁻¹ under a helium atmosphere to remove adsorbed water and other volatile impurities, and the temperature was maintained at 343 K for 30 min. CO pulses were then introduced at 323 K under a continuous helium flow. Adsorption equilibrium was considered reached when the variation in the detected CO amount across three consecutive pulses was less than 2%.

The spatial distribution of the LED’s photon density varied with light intensity. Therefore, the light intensity inhomogeneity was corrected by calculating the effective irradiation area (A₉₅ cm²) [13], defined as the area covering 95% of the total photon density. The calibrated light intensity, I_L (mW·cm⁻²), was then calculated as

where P_a (mW) is the total light power measured using a power meter (Hioki 3664, Hioki E.E., Tokyo, Japan) equipped with a 9742 optical sensor. Similarly, the reaction rate (r) was calibrated based on the CO₂ evolution rate (R_a) obtained from photocatalytic activity tests as

To investigate the multielectron oxygen reduction mechanisms, as well as positive-hole oxidation, over WO₃ and Pt/WO₃, the LID of the acetic acid-oxidation reaction, CH₃COOH + 2O₂ → 2CO₂ + 2H₂O, was evaluated. A photocatalyst powder (30 mg), a magnetic stirrer bar, and 3 mL of 5vol% aqueous acetic acid (Wako Pure Chemical; 99.7%) solution were placed in a quartz reaction cell. The cell was sealed with a rubber septum and Parafilm, and irradiated through a 10 mm × 10 mm square mask using a high-intensity UV-LED (NS Lighting, Osaka, Japan, ULEDN-101; 365 nm). The evolution of CO₂ was monitored every 30 min using a gas chromatograph equipped with a thermal conductivity detector (Shimadzu GC-8A equipped with a Porapak-Q column, Shimadzu Corporation, Kyoto, Japan), and the reaction rates (R_a μmol·h⁻¹) were calculated accordingly.

Figure 1 shows the LID of the reaction rates plotted on a double logarithmic scale. In the case of bare WO₃, the reaction order shifted from first order to 0.5th order with increasing light intensity in the intermediate I_L region. This behavior suggests a two-electron-transfer process, consistent with a previous report [16], and can be interpreted using a kinetic model based on a radical-chain mechanism involving peroxy radicals as chain carriers.

In contrast, the Pt/WO₃ photocatalyst exhibited enhanced reaction rates across the entire I_L region, with the reaction order remaining approximately 0.5th except in the intermediate I_L region. These fundamental features will be discussed in detail later.

A characteristic feature of the Pt/WO₃ case is that the reaction order changed from 0.5th order to zero in the intermediate I_L region and increased again in higher I_L region. When the reaction was conducted under an oxygen atmosphere, the zero-order region disappeared. Therefore, this zero-order behavior is attributed to the diffusion-limited supply of oxygen as one of the reactants.

To further investigate this hypothesis, a series of Pt/WO₃ photocatalysts with different Pt loading amounts was prepared, and their Pt surface areas were estimated by CO adsorption, as shown in Figure 2. The Pt surface area per unit mass of photocatalyst (30 mg) increased with increasing Pt loading amount. Moreover, a good correlation was observed between the Pt surface area and the reaction rate in the zero-order region at lower Pt loadings (0.5–2wt%) (Figure 2 left). These results indicate that the primary active sites for photoexcited-electron transfer in the Pt/WO₃ photocatalyst are located on the Pt surface, and that increasing the available Pt surface area enhances the amount of adsorbed oxygen, thereby leading to an increased reaction rate.

In contrast, a significant decrease in the reaction rate was observed for the 4wt% Pt/WO₃ sample. The average number of Pt particles per one WO₃ particle, estimated from the respective surface area of Pt and WO₃, is shown in Figure 2 (table). It was found that more than two Pt particles were loaded on a single WO₃ particle on average in the 4wt% Pt/WO₃ sample. This suggests that photoexcited electrons generated within a single WO₃ particle may migrate to different Pt particles, thereby suppressing the multielectron oxygen reduction reaction and consequently decreasing the overall reaction rate. The relatively low activity of the 1wt% Pt/WO₃ sample in Figure 2 left can also be interpreted by a slightly higher number of Pt particles per one WO₃ particle (1.5). Similar behavior has been reported for the cocatalyst-loaded titania in oxygen evolution from water [13].

The reaction order and the effect of Pt loading on the quantum efficiency were evaluated based on a kinetic analysis described as follows. Following a previous study on acetic-acid oxidation over titania [16] and studies on radical-chain oxidation mechanisms involving peroxy radicals [3,4,5], a kinetic model was constructed under the following assumptions: (1) a radical chain reaction occurs, in which peroxy radicals act as chain carriers, and (2) only a two-electron oxygen reduction pathway proceeds over WO₃ because of its low conduction band potential [6]. The reaction steps and the corresponding reaction rates are summarized as follows:

where I_L represents the calibrated light intensity, ψ₀ and ψ₁ are the photoabsorption efficiencies of a photocatalyst particle <PC> and <PC>(1e⁻), respectively, φ is the quantum efficiency of electron–hole pair generation, and the k’s denote the corresponding rate constants. The working hypothesis of this mechanism is that: (i) <PC>(1e⁻) is deactivated via reaction (5) without driving a photocatalytic reaction unless further accumulation of electrons and holes occurs through reaction (4) and (ii) once <PC>(2e⁻) is formed via photoabsorption of <PC>(1e⁻), the two electrons are immediately transferred to oxygen, while oxidation of the organic substrate (RH) proceeds simultaneously without deactivation. It should be emphasized that Equation (6), Equation (7), Equation (8) and Equation (9) describe radical-chain oxidation reactions rather than reduction reactions. In the present system, the reductive process is limited to multielectron oxygen reduction, whereas the oxidation of organic substrates proceeds via radical intermediates generated in subsequent chain reactions. The termination step, as expressed by Equation (9), is introduced as a formal kinetic description of radical recombination processes, as conventionally assumed for autooxidation reactions. It does not imply the accumulation of any stable tetroxide species (RO₄R) on the photocatalyst surface, but decomposes spontaneously. As a result, the overall reaction rate is governed by the kinetics of multielectron oxygen reduction and positive-hole oxidation, which control the initiation and sustainability of the subsequent radical-chain oxidation of organic substrates. For simplicity, it is assumed that no back reaction from <PC>(2e⁻) to <PC>(1e⁻) occurs. By applying the steady-state approximation to the concentrations of R•, RO₂•, <PC>(1e⁻), and <PC>(2e⁻), the overall rate r was derived as follows (see SI for details of the derivation):

The first term represents the direct oxidation of acetic acid by photogenerated holes, while the second term corresponds to the radical-chain reaction consuming acetic acid. The former can be neglected by assuming a sufficiently high chain length. Moreover, the rate equation can be simplified in the lower and higher light-intensity limits as follows:

These rate equations are consistent with the experimentally observed change in reaction order for WO₃; first order at lower I_L and 0.5th order at higher I_L regions. The threshold intensity, I_L,thr, between these two regions can be described as follows:

On the assumption that photoabsorption coefficient (ψ₁: presumably depends only on the photocatalyst particle size [9]) and intrinsic quantum efficiency (φ) of electron-hole generation remain constant irrespective of the Pt loading amount, the disappearance of the first-order region for Pt/WO₃ can be attributed to a decrease in the deactivation rate constant (k_d) due to the presence of Pt. The loaded Pt may serve as an electron reservoir, prolonging the lifetime of <PC>(1e⁻). Based on the estimated I_L,thr values of 2.8 and <0.3 mW·cm⁻² for WO₃ and Pt/WO₃, respectively, the k_d was reduced to approximately one-tenth upon Pt loading.

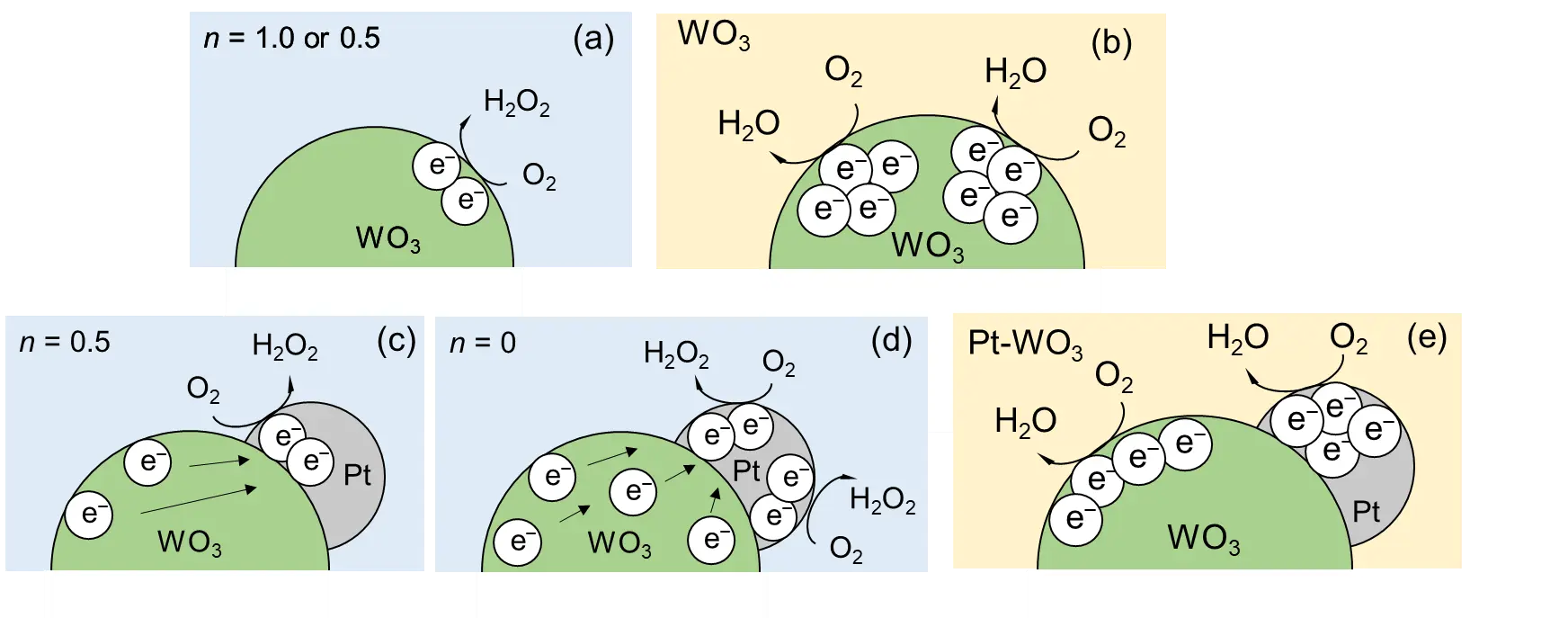

Figure 3 illustrates the proposed reaction mechanism. Under lower I_L conditions, accumulation of four electrons within a single WO₃ particle is difficult; therefore, the reaction proceeds via a two-electron transfer process coupled with a radical-chain mechanism. The reaction exhibits first-order dependence, which presumably results from the combined effects of a second-order dependence for two-electron accumulation and a 0.5th-order dependence from the radical-chain process (Figure 3a). As the I_L increases and two-photon absorption within a single WO₃ particle becomes more probable, the reaction efficiency reaches saturation, resulting in a transition from first order to 0.5th order behavior (Figure 3a).

In the case of Pt/WO₃, the photoexcited electrons are rapidly transferred to the Pt particles, thereby suppressing electron–hole recombination. As a result, two-electron accumulation is consistently maintained on the Pt surface, and the first-order dependence is no longer observed (Figure 3c). Furthermore, two key experimental observations, (i) the disappearance of the zero-order region under an oxygen atmosphere, and (ii) the linear correlation between the reaction rate and the Pt surface area, support the hypothesis that the two-electron oxygen reduction predominantly proceeds on the Pt surface (Figure 3d).

However, the increase in reaction order observed under extremely high I_L conditions cannot be explained solely by the two-electron reduction pathway. One possible interpretation is that a four-electron transfer process becomes operative. Moreover, under these high-intensity conditions, the oxygen supply to the Pt surface appears to be diffusion limited. Therefore, the observed increase in reaction order suggests that the oxygen reduction also occurs on the WO₃ surface in addition to the Pt surface (Figure 3e). In other words, the behavior observed under extremely high I_L regions cannot be explained solely by reactions on the Pt surface, as overcoming the diffusion limitation of oxygen requires additional reduction sites. Consequently, a four-electron oxygen reduction pathway is likely to proceed on both bare WO₃ and Pt/WO₃ photocatalysts under such conditions.

In this study, light-intensity dependences (LIDs) of the reaction rates for photocatalytic oxygen reduction, as well as positive-hole oxidation, were systematically investigated to elucidate the multielectron transfer mechanism and the role of a cocatalyst, based on a kinetic model, using Pt/WO₃ under high-intensity LED irradiation. Bare WO₃ exhibited first, 0.5th, and first-order behaviors under low (<2 mW), intermediate (2–100 mW), and high (>100 mW) I_L conditions, respectively, whereas Pt/WO₃ showed 0.5th, zero, and higher-than-first-order behaviors under the corresponding low (<20 mW), intermediate (20–100 mW), and high (>100 mW) regions.

From a thermodynamic perspective, WO₃ facilitates a two-electron reduction reaction of oxygen because its conduction band edge lies at a more cathodic potential than the standard electrode potential of the one-electron oxygen reduction. The observed LID behavior in the lower I_L region can be reasonably interpreted using a kinetic model based on a radical-chain mechanism initiated by peroxy radicals, under the assumption that oxygen reduction proceeds only when two electrons are accumulated on a single photocatalyst particle.

In the case of Pt/WO₃, the absence of first-order behavior indicates that the accumulation of two electrons is consistently maintained due to suppressed electron-hole recombination (i.e., a reduced k_d) brought about by Pt loading. Furthermore, the reaction rate in the zero-order region increased proportionally with Pt surface area (up to 2wt%), suggesting that the reaction predominantly occurs on the Pt surface. The zero-order dependence is attributed to the oxygen diffusion limitation, as evidenced by the enhanced reaction rate under an oxygen-rich atmosphere.

Finally, the pronounced increase in reaction rate observed under extremely high I_L region implies that the oxygen reduction also proceeds on the WO₃ surface. This finding indicates that the overall reaction rate can be further improved by spatially concentrating the incident light without changing the total energy of light beam.

The following supporting information can be found at: https://www.sciepublish.com/article/pii/898, Details on derivation of rate equations were described in Supplementary Materials.

As described in the Special Issue Information for A Commemorative Issue in Honor of Professor David Ollis: A Pioneer and Mentor, David had significantly advanced photocatalysis research by publishing papers, particularly in the field of kinetic analysis. The authors’ works, including the present paper, on the kinetic analysis of photocatalysis by clarifying the light-intensity dependence would not have been possible without the fruitful discussion with David at the scientific conferences. Here, we would like to express our deepest gratitude to the late David Ollis.
