Effect of Support Preparation Method on the Performance of Ni/SrTiO₃ Catalysts for Dry Reforming of Methane

With the increasing depletion of fossil fuels and the growing concerns over global warming, developing efficient strategies for carbon resource utilization has become an urgent task for sustainable energy conversion [1,2,3]. Among various CO₂ mitigation and carbon recycling routes, dry reforming of methane (DRM) has attracted considerable attention because it simultaneously consumes two major greenhouse gases, CH₄ and CO₂, to produce synthesis gas (H₂/CO), which serves as a versatile feedstock to produce fuels and valuable chemicals [4,5,6]. The generated syngas can be further converted into higher hydrocarbons, alcohols, and aromatics through Fischer-Tropsch synthesis and related processes, providing a promising pathway for achieving carbon neutrality and reducing greenhouse gas emissions [7,8,9]. Ni-based catalysts are widely regarded as the most promising candidates for the DRM reaction due to their high catalytic activity and relatively low cost compared with noble metal catalysts such as Rh, Ru, and Pt. However, these catalysts still suffer from severe sintering and carbon deposition under high-temperature DRM conditions, which lead to rapid deactivation and hinder their long-term industrial application [10,11,12]. Therefore, designing catalysts that simultaneously exhibit high activity, strong sintering resistance, and excellent anti-coking capability remains a central challenge in DRM catalysis.

DRM reaction involves the concurrent activation of both CH₄ and CO₂ molecules on the catalyst surface [13]. CH₄ dissociation primarily occurs on the active Ni sites, generating surface carbon species that are prone to accumulate and form filamentous carbon. In contrast, CO₂ activation and oxygen mobility are mainly governed by the physicochemical properties of the support, which determine the ability to remove surface carbon via oxidation [14,15,16]. Consequently, support plays a critical role in enhancing the coking resistance and stability of Ni-based catalysts.

Among various support materials, perovskite-type oxides with an ABO₃ structure have gained increasing attention as catalyst supports owing to their excellent thermal stability, flexible composition, and high lattice-oxygen mobility [17,18,19,20]. These characteristics enable strong metal-support interactions and tunable redox properties that are highly favorable for improving metal dispersion and catalytic stability. Han et al. [21] reported that oxygen vacancy rich Ni/SrTiO_3−x catalysts exhibited greatly enhanced CO₂ adsorption and activation, achieving nearly sixfold higher CO₂ conversion under photothermal conditions than stoichiometric Ni/SrTiO₃, owing to the synergistic interaction between Ni clusters and lattice vacancies. Luo et al. [22] demonstrated that Ru/SrTiO₃ nanosheets exposing {110} Sr-O-Ti facets could strongly anchor CO₂ and CO intermediates at the metal oxide interface, resulting in doubled CH₄ formation rates while maintaining nearly 100% selectivity under mild photothermal hydrogenation conditions. Cao et al. [23] further showed that La₂NiO₄ perovskite oxides acted as self-regenerative supports that decomposed in situ to yield finely dispersed Ni⁰ nanoparticles strongly bound to La₂O₃, which exhibited high activity, excellent coking resistance, and stable performance after repeated regeneration cycles.

The preparation method has a significant influence on the structural and physicochemical properties of catalysts, thereby strongly affecting their catalytic performance. Pirzadi et al. [24] reported that, among five Ni/CaO·Al₂O₃ catalysts synthesized by different methods, the one obtained via the sol-gel route exhibited the highest DRM activity, which was attributed to its finely dispersed Ni particles and enhanced metal-support interaction. Cao et al. [25] compared LaNiO₃ perovskite catalysts prepared by sol-gel, co-precipitation, and hydrothermal methods, and found that the sol-gel derived sample showed the highest activity and stability due to its improved crystallinity and lower impurity content. Similarly, Suárez-Vázquez et al. [26] synthesized SrTiO₃ perovskites via a one-pot hydrothermal route, which yielded dendritic structures with higher surface areas and richer surface oxygen species, resulting in significantly enhanced oxidation activity and stability. Moreover, Sunny et al. [27] employed a hydrothermal strategy to prepare MOF-74/SrTiO₃ composites with controlled crystal growth and improved structural stability, further highlighting the crucial role of the synthesis route in tuning the physicochemical characteristics of SrTiO₃-based materials.

Despite these advances, systematic investigations comparing the influence of different preparation methods on the metal-support interaction and reaction behavior of perovskite-derived Ni/SrTiO₃ catalysts remain limited. In this work, Ni/SrTiO₃ catalysts were synthesized via co-precipitation (CP), hydrothermal (HT), and sol-gel (SG) methods. Their catalytic performances in the DRM reaction were evaluated in a fixed-bed reactor, and comprehensive structural characterizations were conducted before and after the reaction to elucidate the relationship between synthesis route, metal-support interaction, and catalytic stability. Furthermore, temperature-programmed surface reaction (TPSR) experiments were performed by sequentially introducing CH₄, CO₂, and CH₄/CO₂ mixtures to gain a deeper insight into the surface reaction behavior and carbon oxygen coupling mechanism during DRM.

Ni(NO₃)₂·6H₂O (98%) and Sr(NO₃)₂ (98%) were purchased from Macklin Biochemical Technology Co., Ltd. (Shanghai, China). Ti(OC₄H₉)₄ (99%), EDTA, and citric acid were obtained from Aladdin Biochemical Technology Co., Ltd. (Shanghai, China). All chemicals were of analytical grade and used as received.

SrTiO₃ (STO) supports were prepared by CP, HT, and SG methods. The Sr/Ti molar ratio was fixed at 1:1.

In this work, Ni/SrTiO₃ catalysts were prepared by the impregnation method with a nominal Ni loading of 5 wt%. Nickel nitrate hexahydrate (Ni (NO₃)₂·6H₂O) was dissolved in deionized water to form a 0.5 mol·L⁻¹ solution, which was then mixed with SrTiO₃ supports prepared by the CO, HT, and SG methods. The mixtures were rotary-evaporated at 40 °C to remove excess water, dried overnight at 120 °C, and calcined sequentially at 400 °C for 4 h and 700 °C for 4 h. The resulting catalysts were denoted as Ni/CP-STO, Ni/HT-STO, and Ni/SG-STO.

The phase composition of the samples was analyzed by X-ray diffraction (XRD, Rigaku Ultima IV，Rigaku Corp., Tokyo, Japan, Cu Kα, λ = 1.5406 Å). The surface area and pore structure were determined by N₂ adsorption-desorption isotherms at −196 °C using a Micromeritics ASAP 2460 analyzer (Micromeritics Instrument Corp., Norcross, GA, USA). The morphology and particle distribution were observed by transmission electron microscopy (TEM, JEOL JEM-2100F, JEOL Ltd., Tokyo, Japan ). The reducibility of the catalysts was evaluated by H₂ temperature-programmed reduction (H₂-TPR, Micromeritics AutoChem II 2920, Micromeritics Instrument Corp., Norcross, GA, USA). For H₂-TPR, The U-type quartz reactor was loaded with 200 mg of catalyst and pretreated under Ar (50 mL/min) at 300 °C for 60 min. Subsequently, the reactor was cooled to 100 °C, and a 10% H₂/Ar mixture gas (30 mL/min) was introduced, while the temperature increased to 850 °C (10 °C/min). The thermal conductivity detector (TCD) was utilized to detect the H₂ consumption signals. For H₂ chemisorption, the catalyst (100 mg) was first reduced under a flow of 10% H₂/Ar (30 mL·min⁻¹) at 700 °C for 60 min, followed by purging with Ar (30 mL·min⁻¹) to remove the residual H₂. The reactor was then cooled down to 50 °C under Ar flow, and pulses of H₂ were introduced until saturated adsorption was achieved. Assuming an adsorption stoichiometry of H/Ni = 1, the Ni dispersion was subsequently calculated. Thermogravimetric analysis (TGA) of the spent catalysts was performed on Netzsch STA 2500 (Netzsch-Gerätebau GmbH, Selb, Germany). The samples were heated from 30 °C to 850 °C at a rate of 10 °C/min under air, and the TG curves were recorded. The DTG profile was the first-order differential of the corresponding TG curve.

The catalytic performance of the Ni/SrTiO₃ catalysts was evaluated in a quartz fixed-bed tubular reactor (inner diameter: 6 mm). The catalyst (200 mg, 20–40 mesh) was diluted with quartz sand (1000 mg, 20–40 mesh) and placed at the center of the reactor. Prior to the reaction, 10% H₂/Ar (30 mL·min⁻¹) was introduced to reduce the catalyst at 700 °C for 60 min. Subsequently, a mixture of gases CH₄ and CO₂ was introduced into the reactor with a CH₄/CO₂ ratio of 1:1 (v/v) and a total flow rate of 80 mL·min⁻¹, corresponding to a weight hourly space velocity (WHSV) of 24,000 mL·g⁻¹·h⁻¹. Finally, the outlet gases were analyzed by an online gas chromatograph (GC, equipped with a TDX-01 column and TCD).

The conversions of CH₄ and CO₂ and the molar ratio of H₂/CO were calculated by Equation (1), Equation (2) and Equation (3):

where, $${\mathrm{F}}_{\mathrm{i}\mathrm{n},\mathrm{ }{\mathrm{C}\mathrm{H}}_{4}}$$ and $${\mathrm{F}}_{\mathrm{i}\mathrm{n},\mathrm{ }{\mathrm{C}\mathrm{O}}_{2}}$$ were the flow rate (mL·h⁻¹) of CH₄ and CO₂, respectively, at the inlet; $${\mathrm{F}}_{\mathrm{o}\mathrm{u}\mathrm{t},\mathrm{ }{\mathrm{C}\mathrm{H}}_{4}}$$, $${\mathrm{F}}_{\mathrm{o}\mathrm{u}\mathrm{t},\mathrm{ }{\mathrm{C}\mathrm{O}}_{2}}$$, $${\mathrm{F}}_{\mathrm{o}\mathrm{u}\mathrm{t},\mathrm{ }{\mathrm{H}}_{2}}$$ and $${\mathrm{F}}_{\mathrm{o}\mathrm{u}\mathrm{t},\mathrm{C}\mathrm{O}}$$ were the flow rate (mL·h⁻¹) of CH₄, CO₂, H₂ and CO, respectively, at the outlet.

CO and coke selectivity were calculated based on the overall carbon balance according to the following Equation (4) and Equation (5):

where, $${\mathrm{X}}_{{\mathrm{C}\mathrm{H}}_{4}}$$ and $${\mathrm{X}}_{{\mathrm{C}\mathrm{O}}_{2}}$$ are the conversions of CH₄ and CO₂, respectively.

TPSR experiments were conducted to probe the surface reaction behavior of the catalysts. The tests were carried out on a fixed-bed quartz flow reactor (inner diameter: 8 mm) loaded with 100 mg of catalyst mixed with 600 mg of quartz sand. Prior to each run, the catalyst was reduced in 10% H₂/Ar (50 mL·min⁻¹) at 700 °C for 1 h. Three consecutive programs were performed. For CH₄-TPSR: after reduction, the bed was cooled to 100 °C under Ar (50 mL·min⁻¹), then switched to 10% CH₄/Ar (30 mL·min⁻¹). Once the baseline stabilized, the temperature was ramped from 100 to 850 °C with a heating rate of 10 °C·min⁻¹. The effluent was continuously analyzed by an online mass spectrometer (GSD350 OmniStar, Pfeiffer Vacuum GmbH, Asslar, Germany), monitoring H₂ (m/z = 2), CH₄ (m/z = 16), CO (m/z = 28), and CO₂ (m/z = 44). CO₂-TPSR: after CH₄-TPSR, the reactor was purged with Ar (30 mL·min⁻¹) and cooled to 100 °C, then fed with CO₂ (40 mL·min⁻¹). After stabilization, the temperature was increased from 100 to 850 °C (10 °C·min⁻¹), with the online MS detection for the effluent CO₂ and CO. CH₄&CO₂-TPSR: following CO₂-TPSR, the bed was purged with Ar and cooled to 100 °C. The mixture of CH₄/CO₂ (volume ratio of 1/1, 40 mL·min⁻¹) was introduced, and the temperature was ramped from 100 to 850 °C (10 °C·min⁻¹) while continuously monitoring H₂, CH₄, CO, and CO₂ signals.

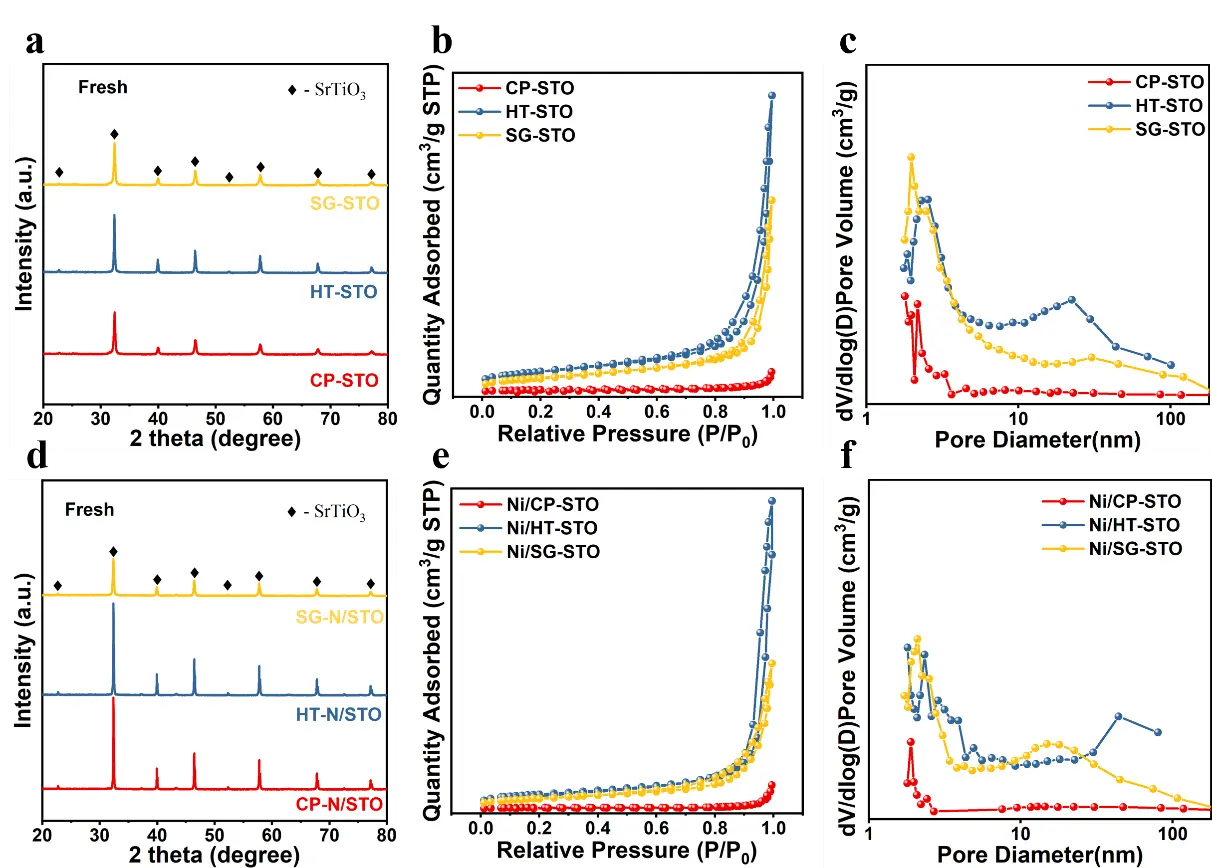

Figure 1a presents the XRD patterns of the SrTiO₃ supports synthesized by CP, HT, and SG methods. All samples exhibited the typical diffraction peaks of the perovskite SrTiO₃ phase (PDF#04-007-0044), and no impurity phases such as SrCO₃ or TiO₂ were detected, confirming the successful formation of a single-phase perovskite structure [26,28]. The hydrothermal method promoted complete crystallization and well-defined lattice ordering, while the sol-gel route yielded slightly broader peaks due to smaller and less ordered crystallites [29,30]. The CP-STO sample showed the weakest diffraction intensity, implying lower crystallinity and partial lattice disorder, which may stem from rapid nucleation and limited particle growth during precipitation. As shown in Figure 1b,c, all SrTiO₃ supports displayed type IV N₂ adsorption-desorption isotherms with H3-type hysteresis loops, characteristic of mesoporous materials [31]. The pore size distribution curves revealed that the average pore diameters were primarily distributed in the 10–50 nm range. Notably, the specific surface area and pore volume varied significantly with the synthesis method (Table 1): HT-STO exhibited the largest surface area (18.78 m²·g⁻¹), followed by SG-STO (13.90 m²·g⁻¹), whereas CP-STO possessed only 2.70 m²·g⁻¹. These variations can be attributed to differences in nucleation and crystal growth behavior—slow and controlled growth under hydrothermal conditions facilitates smaller, more dispersed particles and a looser microstructure, whereas the co-precipitation route tends to produce agglomerated grains with fewer accessible pores [32,33].

After Ni impregnation, the XRD patterns of the Ni/SrTiO₃ catalysts (Figure 1d) remained nearly identical to those of the corresponding supports, with no detectable reflections corresponding to Ni or NiO species [34]. This indicates that the Ni nanoparticles were either highly dispersed on the SrTiO₃ surface or partially incorporated into the perovskite lattice through substitutional sites. The preservation of the perovskite structure upon Ni loading demonstrates the excellent structural stability of SrTiO₃. As shown in Figure 1e,f, the N₂ isotherms and pore-size distributions of the Ni-loaded samples were consistent with those of the bare supports, suggesting that the impregnation process did not significantly alter the textural features.

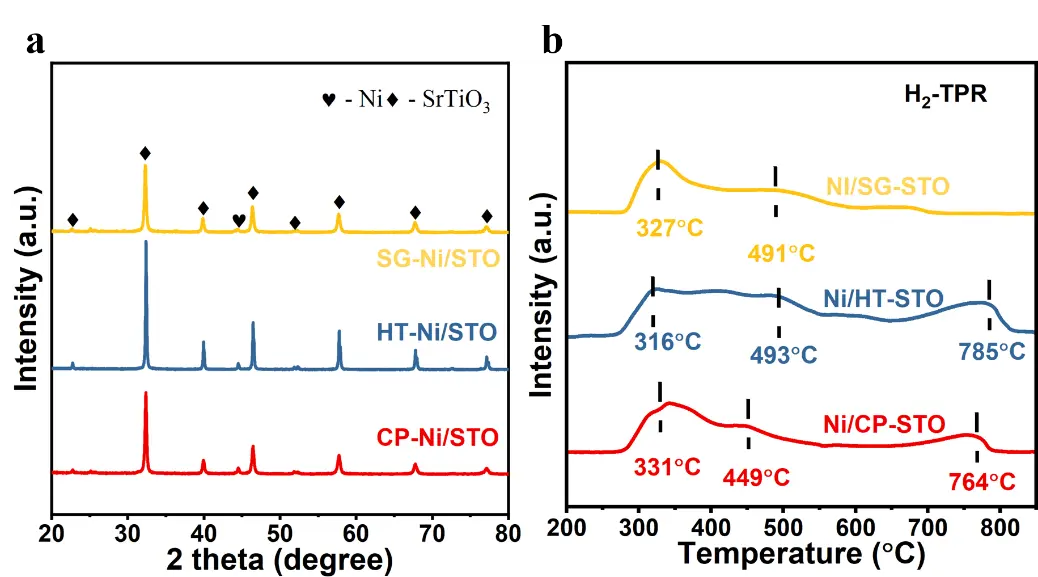

Figure 2a shows the XRD patterns of the catalysts after reduction at 700 °C for 1 h. All samples maintain the characteristic diffraction peaks of SrTiO₃, indicating that the perovskite framework remains stable during the reduction process [35,36]. In addition, distinct reflections assigned to metallic Ni appear in each catalyst, confirming that the NiO species were successfully reduced to Ni⁰. The absence of any impurity or decomposition phase demonstrates that the reduction treatment does not induce structural collapse, further evidencing the excellent thermal stability of the SrTiO₃ support. Notably, the diffraction peaks of Ni/SG-STO are relatively broad and weak compared with those of Ni/CP-STO and Ni/HT-STO, suggesting that the sol-gel route favors the formation of smaller Ni crystallites with higher dispersion on the surface. This trend is consistent with the quantitative results summarized in Table 2, where Ni/SG-STO exhibits the smallest Ni crystallite and particle sizes (14.6–14.9 nm from XRD/TEM) together with the highest dispersion (5.9%), whereas Ni/CP-STO and Ni/HT-STO possess larger Ni domains and lower dispersions.

The H₂-TPR profiles (Figure 2b) reveal distinct reduction behaviors among the three catalysts. Multiple reduction regions can be identified, corresponding to Ni species with different interaction strengths: surface NiO weakly bound to the support (below 350 °C), interfacial NiO-SrTiO₃ species (400–550 °C), and strongly incorporated Ni²⁺ in the perovskite lattice (above 700 °C) [37,38]. Both Ni/CP-STO and Ni/HT-STO exhibit three well-resolved reduction peaks, indicating the coexistence of surface NiO and lattice embedded Ni²⁺ species. In contrast, Ni/SG-STO displays two broader peaks with a less pronounced high-temperature signal, suggesting a more homogeneous Ni distribution and fewer Ni²⁺ ions deeply incorporated in the lattice. The slightly higher reduction temperatures of Ni/SG-STO compared with Ni/CP-STO imply stronger metal-support interactions, whereas the suppressed high temperature reduction indicates that only a small fraction of Ni²⁺ species remain unreduced at 700 °C. The balanced reducibility and enhanced Ni dispersion (Table 2) demonstrate that the sol-gel method produces an optimal Ni-support interaction that simultaneously promotes high dispersion and structural stability under DRM conditions.

The TEM images and corresponding particle size distributions (Figure 3a–c) show that Ni nanoparticles are uniformly dispersed on the SrTiO₃ support for all samples. Among them, Ni/SG-STO exhibits the smallest and most narrowly distributed Ni particles, while Ni/CP-STO and Ni/HT-STO display slightly larger and broader size distributions, consistent with the XRD Scherrer and chemisorption results summarized in Table 2. Representative TEM and EDS mapping images of the reduced Ni/SG-STO catalyst (Figure 3d–f) further confirm the homogeneous dispersion of Ni nanoparticles on the SrTiO₃ surface without visible aggregation. The strong spatial overlap of Sr, Ti, and Ni signals demonstrates intimate metal-support contact, which aligns well with the enhanced interfacial interaction inferred from the H₂-TPR results [39]. The surface morphology observed by SEM (Figure 3g,h) reveals densely packed yet finely dispersed spherical grains, within which Ni nanoparticles are uniformly anchored on the SrTiO₃ crystallites. Such uniform microstructural features are expected to expose abundant accessible active sites while simultaneously suppressing particle sintering during DRM.

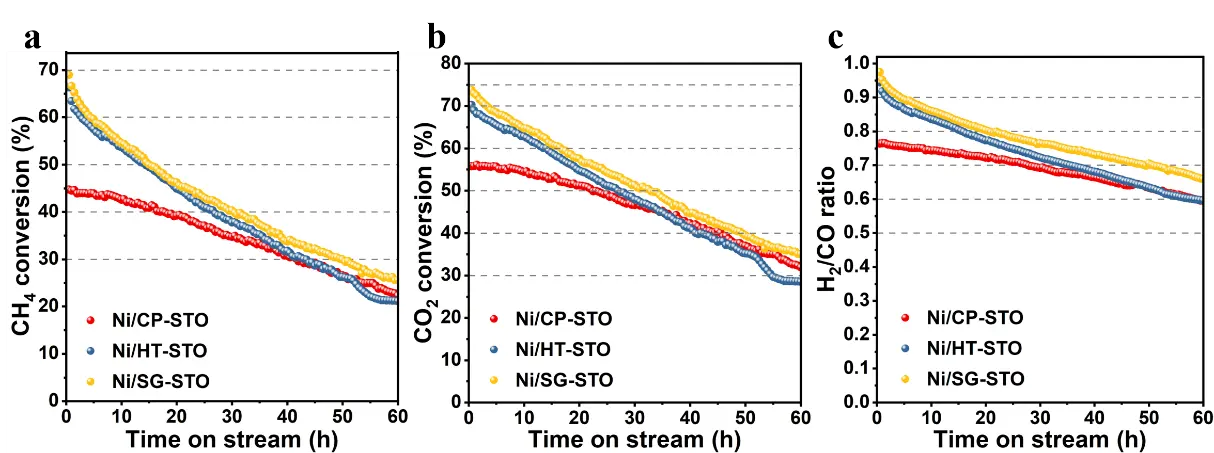

Figure 4 compares the catalytic performances of Ni/CP-STO, Ni/HT-STO, and Ni/SG-STO catalysts in DRM at 700 °C. All catalysts exhibited a gradual decline in CH₄ and CO₂ conversions with time on stream, yet the extent of deactivation clearly depended on the preparation method. The initial CH₄ conversions followed the order Ni/SG-STO (68.9%) > Ni/HT-STO (66.3%) > Ni/CP-STO (44.8%), consistent with their Ni dispersion levels (5.9%, 4.4%, and 2.1%). The higher dispersion and smaller Ni crystallite size of Ni/SG-STO (14.91 nm) provided more accessible Ni⁰ sites for CH₄ activation, resulting in its highest initial activity. Ni/HT-STO, with slightly larger Ni particles (27.12 nm) and weaker metal-support interaction, exhibited a comparable but slightly lower activity. In contrast, Ni/CP-STO possessed the lowest dispersion (2.1%) and the largest Ni particles (25.83 nm), leading to fewer exposed active sites and a lower CH₄ conversion.

During the 60 h stability test, the CH₄ and CO₂ conversions of all catalysts gradually decreased, but the rate of decline varied. Ni/HT-STO showed the most pronounced deactivation, indicating that its Ni particles were less strongly anchored on the support. Ni/CP-STO, despite its low initial activity, exhibited the slowest decline in conversion, which is attributed to its weaker CH₄ activation and less coke formation. Ni/SG-STO displayed intermediate behavior, combining high initial activity with acceptable stability, suggesting that the sol-gel synthesis offered a favorable balance between Ni dispersion and interaction strength [40]. The H₂/CO ratios of all catalysts were initially close to unity, confirming that the DRM reaction dominated under the tested conditions. With time on stream, the ratios gradually decreased, particularly for Ni/HT-STO, implying that the number of accessible Ni active sites decreased as the reaction proceeded. The distinct activity and stability behaviors observed here can be rationalized by the differences in Ni dispersion and metal-support interaction derived from the synthesis method, which will be further analyzed in the following section.

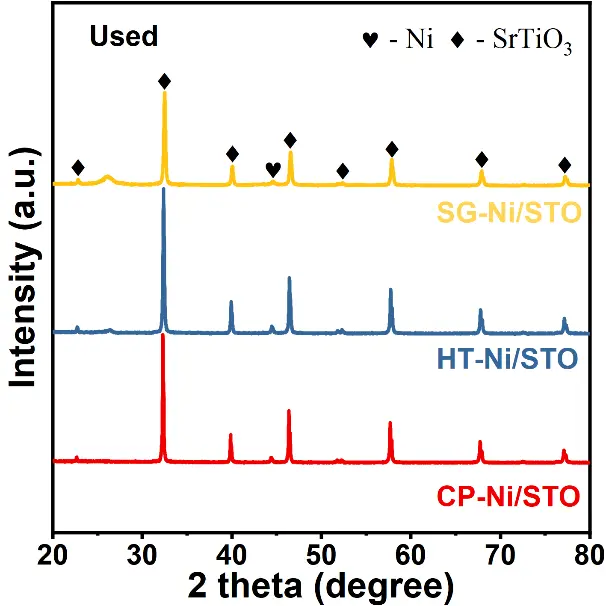

Figure 5 shows the XRD patterns of the Ni/SrTiO₃ catalysts after the DRM reaction. All samples maintain the characteristic diffraction peaks of SrTiO₃, confirming that the perovskite framework remains intact even after prolonged operation at 700 °C. This excellent phase stability highlights the strong thermal robustness of SrTiO₃ as a support under harsh reforming conditions. A weak diffraction feature at approximately 26.2° is detected in all spent samples and is attributed to graphitic carbon formed on the catalyst surface [41]. The intensity of this peak follows the order Ni/HT-STO > Ni/SG-STO > Ni/CP-STO, implying that the hydrothermal catalyst experiences more pronounced carbon deposition, consistent with its faster deactivation trend discussed earlier. The metallic Ni peaks remain visible, and no new impurity or NiO peaks are detected, indicating that Ni species are well stabilized on the SrTiO₃ surface during the reaction. According to Table 2, the Ni crystallite size changes slightly after the reaction, following the order Ni/SG-STO (2.33 nm) < Ni/CP-STO (2.62 nm) < Ni/HT-STO (6.46 nm), confirming the superior sintering resistance of Ni/SG-STO.

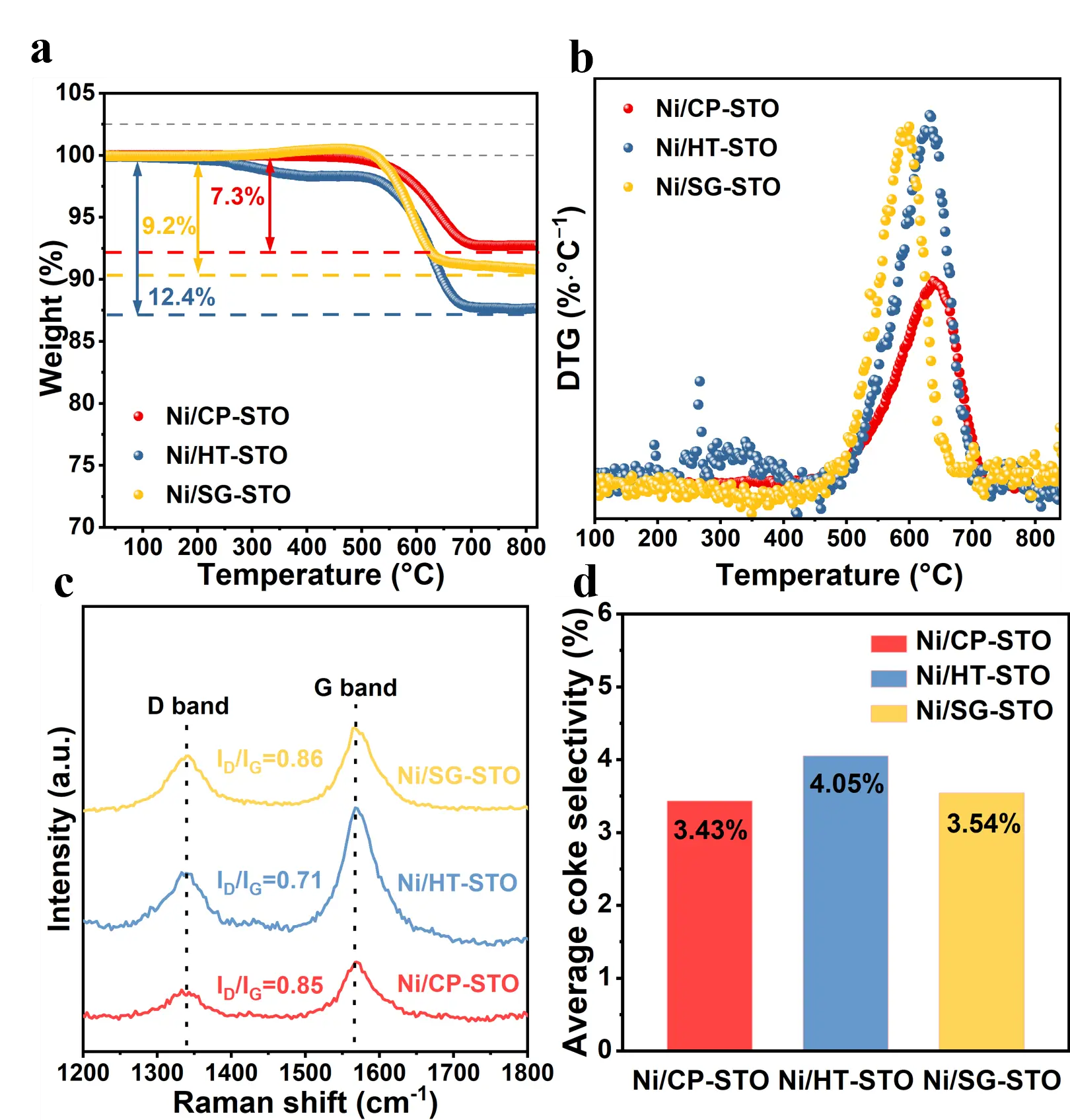

Carbon deposition behaviors were further analyzed by thermogravimetric (TG/DTG) and Raman spectroscopy in Figure 6a,b. In the TG curves measured under air flow, the total weight losses corresponding to carbon oxidation are 12.4% for Ni/HT-STO, 9.2% for Ni/SG-STO, and 7.3% for Ni/CP-STO. The DTG profiles show distinct oxidation peaks centered at approximately 640 °C for Ni/HT-STO, 605 °C for Ni/CP-STO, and 580 °C for Ni/SG-STO, respectively. The lower combustion temperature of Ni/SG-STO indicates that the deposited carbon is more reactive and easier to oxidize, whereas the higher temperature peak of Ni/HT-STO corresponds to more graphitic, strongly bound carbon that requires higher energy for removal [42]. Notably, the smallest carbon amount on Ni/CP-STO is consistent with its relatively low activity and slower deactivation rate, since fewer active Ni sites for CH₄ dissociation generate less coke despite the lower overall performance.

As shown in Figure 6c, two characteristic bands appear at around 1350 cm⁻¹ (D band, disordered amorphous carbon) and 1580 cm⁻¹ (G band, graphitic carbon). The intensity ratio (I_D/I_G) reflects the degree of graphitization: a lower ratio indicates more ordered, inert carbon species, whereas a higher ratio suggests more disordered, reactive carbon [41]. The I_D/I_G ratios follow the order Ni/HT-STO (0.71) < Ni/CP-STO (0.85) ≈ Ni/SG-STO (0.86). Combining these results, the higher oxidation temperature and lower I_D/I_G ratio of Ni/HT-STO confirm that it mainly accumulates dense graphitic carbon, which is thermally stable and difficult to remove [43,44]. In contrast, the lower oxidation temperature and higher I_D/I_G ratio of Ni/SG-STO reveal that the deposited carbon is more amorphous and less ordered, consistent with its partial removal during reaction and slower deactivation rate. The Ni/CP-STO sample shows the smallest carbon amount and an intermediate oxidation temperature, reflecting its limited CH₄ dissociation activity and hence reduced carbon formation. Furthermore, as shown in Figure 6d, the coke selectivity has been calculated to evaluate the carbon formation tendency of the catalysts. Considering that carbon deposition in the DRM process mainly originates from CH₄ cracking, this calculation provides a quantitative approach to assess the catalysts’ resistance to carbon accumulation. The results correspond well with the above TG analysis.

The TEM and EDS analyses (Figure 7) provide direct insights into the carbon deposition behavior and morphological evolution of the catalysts after the DRM reaction. All three samples exhibit the formation of filamentous carbon or carbon nanotubes surrounding the Ni particles, confirming that carbon accumulation occurs to varying extents. For Ni/CP-STO (Figure 7a–c), most Ni nanoparticles remain anchored to the SrTiO₃ surface with only a limited amount of carbon filaments, consistent with the lower carbon content observed in the TG results. The strong Ni-support interaction and relatively low methane activation activity of the co-precipitated catalyst effectively suppress excessive carbon growth [45,46,47]. In contrast, Ni/HT-STO (Figure 7d–f) shows numerous Ni nanoparticles detached from the SrTiO₃ surface and encapsulated by thick filamentous carbon layers. These carbon filaments grow outward from the Ni particles, forming a network structure typical of catalytic carbon deposition, which blocks active sites and accelerates catalyst deactivation [48]. This observation agrees well with its highest weight loss in TG analysis and lowest I_D/I_G ratio in Raman spectra, both indicating the formation of graphitic, thermally stable carbon that is difficult to remove. The Ni/SG-STO catalyst (Figure 7g–i) also exhibits filamentous carbon structures, but a considerable portion of Ni nanoparticles remains in close contact with the support. According to the TEM particle size statistics summarized in Table 2, the average Ni particle size after reaction increases slightly for all catalysts, following the order Ni/SG-STO (2.7 nm) < Ni/CP-STO (4.3 nm) < Ni/HT-STO (6.1 nm). This trend clearly demonstrates that the sol-gel derived Ni/SG-STO possesses the strongest anti-sintering ability under DRM conditions.

To gain further insight into the surface reaction behavior and the relationship between structural characteristics and catalytic performance, temperature-programmed surface reaction (TPSR) experiments were conducted over Ni/H-STO and Ni/SG-STO catalysts.

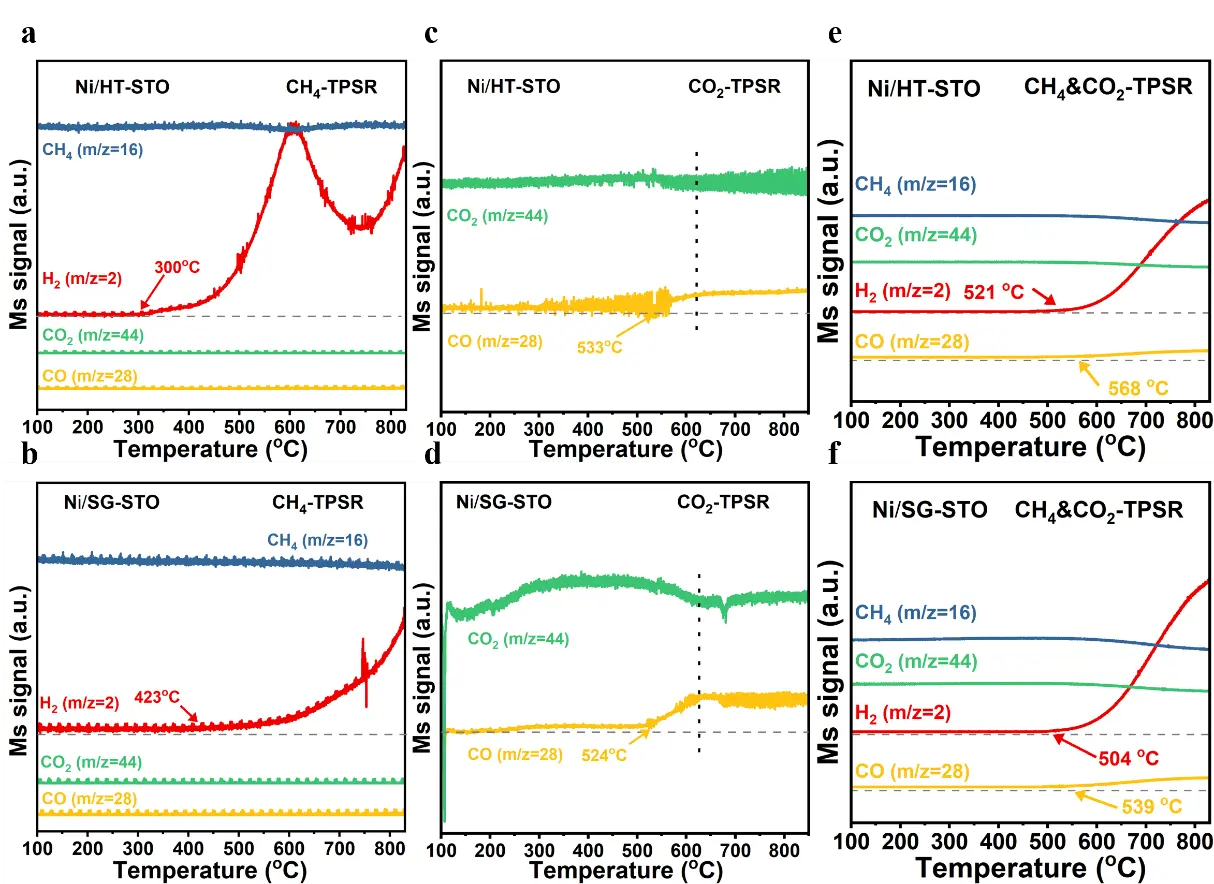

In the CH₄-TPSR profiles (Figure 8a,b), both catalysts display distinct H₂ evolution, indicating CH₄ decomposition on metallic Ni sites. For Ni/H-STO, the H₂ signal emerges at around 300 °C and increases sharply with temperature, reflecting a strong CH₄ activation ability. However, a temporary decline occurs near 600 °C, followed by a new rise above 700 °C, which can be attributed to the blockage of Ni sites by accumulated carbon at intermediate temperatures and subsequent partial carbon removal at higher temperatures. In contrast, Ni/SG-STO initiates H₂ formation at a higher temperature (≈420 °C), implying that its stronger Ni-support interaction slightly retards CH₄ dissociation [35,49]. Nevertheless, its H₂ evolution remains smoother and more stable throughout the heating process, suggesting suppressed carbon accumulation and better Ni stabilization.

The CO₂-TPSR curves (Figure 8c,d) reveal distinct CO₂ activation behaviors. Ni/H-STO exhibits a weak CO signal at 533 °C, indicating limited CO₂ dissociation and slow carbon oxidation. Conversely, Ni/SG-STO shows CO generation beginning at 524 °C and peaking near 630 °C, confirming the enhanced CO₂ activation. Higher CO intensity implies that CO₂ molecules can more effectively interact with surface carbon and lattice oxygen, facilitating carbon removal [50,51]. During the CH₄&CO₂-TPSR process (Figure 8e,f), Ni/SG-STO exhibits simultaneous H₂ and CO release at lower temperatures (504–539 °C) compared to Ni/H-STO (521–568 °C), indicating that both CH₄ and CO₂ activation proceed more readily. The concurrent evolution of H₂ and CO suggests a well-coupled reforming mechanism, where CH₄ decomposition and CO₂ reduction are dynamically balanced [52,53]. Overall, these results reveal a clear structure activity correlation: the sol-gel derived Ni/SG-STO possesses an optimal Ni-support interaction and higher interfacial oxygen mobility, enabling more efficient CO₂ activation and continuous carbon removal. In contrast, the weaker interfacial bonding in Ni/H-STO promotes faster CH₄ dissociation but also severe carbon buildup, leading to periodic site blockage and faster deactivation.

This study systematically investigated Ni/SrTiO₃ catalysts prepared by CP, HT, and SG methods to elucidate the influence of preparation routes on the structure-performance relationship in DRM. All catalysts retained the perovskite SrTiO₃ structure after reduction and reaction, confirming the excellent thermal stability of the support. Among them, HT-STO and SG-STO exhibited larger surface areas (18.78 and 13.90 m²·g⁻¹) than CP-STO (2.70 m²·g⁻¹). The Ni/SG-STO catalyst possessed the smallest Ni crystallite size (14.91 nm) and the highest Ni dispersion (5.9%), while Ni/HT-STO showed a slightly larger Ni size (27.12 nm) but still higher dispersion (4.4%) than Ni/CP-STO (25.83 nm, 2.1%). These structural features contributed to their higher initial CH₄ conversions of 66.3% and 68.9%, respectively, compared with 44.8% for Ni/CP-STO. However, Ni/HT-STO showed the fastest deactivation, with CH₄ conversion dropping to 21.2% after 60 h due to severe carbon deposition (12.4 wt%) and pronounced Ni sintering (particle growth of 6.08 nm). In contrast, Ni/SG-STO maintained higher activity (25.6% after 60 h) with moderate carbon accumulation (9.2 wt%) and minimal Ni particle growth (2.64 nm), confirming its strong resistance to sintering and coking. Raman and TG-DTG analyses further revealed that Ni/SG-STO mainly formed less graphitic, more reactive carbon species, whereas Ni/HT-STO accumulated dense graphitic carbon that was difficult to remove. TPSR results also indicated that Ni/SG-STO enabled CH₄ activation and CO₂ dissociation to occur at lower temperatures (504 °C and 539 °C), achieving better carbon-oxygen coupling and continuous surface renewal. Overall, these results demonstrate that the sol-gel route provides a favorable balance between Ni dispersion and interfacial bonding, effectively enhancing the anti-sintering, anti-coking, and reaction-coupling performance of Ni/SrTiO₃ catalysts under DRM conditions.
