Structural Design and Application of Two-Dimensional Electromagnetic Wave Absorption and Shielding Materials

Electromagnetic waves (EMW) possess the advantage of efficient communication, which has greatly promoted the progress of human society and provided a solid foundation for advanced technological fields such as national defense, aviation, and medicine [1,2,3,4]. However, the potential harm to the human body and the interference effects on electronic devices that EMW may cause have made people increasingly attach importance to necessary protective measures and functional materials [5,6,7,8]. Among them, the process of absorbing and shielding EMW through specific materials is regarded as the most effective countermeasure against the hazards of EMW at present [9,10,11].

The development of EMW absorption and shielding materials is closely related to the evolution of electronic technology and military demands. The early EMW shielding materials were mainly made of metallic materials, which achieved shielding of EMW through reflection. With the increasing demand for radar detection, specific materials such as ferrites and carbon powders that can absorb EMW and convert them into heat energy have become the focus of research [12,13,14]. With the advancement of technology for multifunctional EMW protection, the integration of multifunctional EMW absorption and shielding materials has become a big necessity [15,16,17,18]. In order to meet the high EMW protection standards required, people have focused on exploring new structures or new synthetic methods for materials at present.

Two-dimensional (2D) materials are one of the widely used materials in EMW absorption and shielding materials, which possess many advantages such as large specific surface area, excellent dielectric properties, and vacancy defects [19,20,21,22]. Their specific characters make the 2D materials inherently possess good EMW absorption properties. When 2D materials with unique multi-layer structures are combined with other metals or magnetic materials, they can achieve very attractive EMW absorption and shielding effects. All these make 2D EMW absorption and shielding materials a research hotspot in the fields of civilian and military uses [23,24,25]. So far, although there have been many advancements in the research on 2D materials in EMW AS, there are few comprehensive reviews that include both 2D synthetic materials and mineral materials, especially 2D natural mineral materials. In this regard, we think it is urgent to conduct a systematic review on the structural design, loss mechanism, and specific applications of 2D EMW absorption and shielding materials, which may provide useful theoretical support and design basis for the green development of EMW protection materials.

This review first provides a comprehensive explanation of the loss mechanisms of 2D materials in EMW absorption and shielding, establishing the theoretical basis for the design of these materials. Second, by analyzing the characteristics and advantages of different 2D materials, the key points of structural design in principle are clarified. Third, to open up new routes for the effective utilization of economical fillers in functional composite materials with sustainability, the functionalization design and the synthesis with 2D natural minerals in EMW absorption and shielding are discussed in detail. Recent progresses on the application of 2D EMW absorption and shielding materials is comprehensively summarized. Finally, new challenges and future directions on the development of highly efficient 2D EMW absorption and shielding materials are presented.

When EMW enters the surface of a material, three phenomena usually occur: reflection, absorption, and transmission. The key to achieving EMW absorption and shielding lies in absorbing and reflecting the EMW to the greatest extent, converting them into thermal energy, minimizing the transmission of the EMW, and thus protecting the internal objects [26].

The shielding effectiveness (SE) is usually used to measure the shielding performance of materials against EMW, which is defined as the logarithmic function of the ratio of incident power density to transmitted power density [27]. The formula is as follows:

where P_i and P_t are the incident and transmitted power densities; E_i and E_t denote the incident and transmitted electric field intensities; H_i and H_t stand for the incident and transmitted magnetic field intensities, respectively.

In addition to the aforementioned absorption loss and reflection loss, there are also multiple reflection losses in the electromagnetic wave shielding mechanism. Hence, the SE can be expressed as the sum of the reflection loss (SE_R), absorption loss (SE_A), and multiple reflection loss (SE_M) (Figure 1). The expressions are as follows [28,29]:

where σ represents the electrical conductivity, μ represents the magnetic permeability. f, d, and δ respectively denote the frequency of the EMW, the thickness of the shielding material, and the skin (or penetration) depth.

From Equation (3), the reflection loss of EMW is directly proportional to the conductivity of the material and inversely proportional to its magnetism. Therefore, materials with weak magnetism and high conductivity are crucial for enhancing reflection loss. For some non-magnetic metals, such as gold, silver, and copper, they are the best materials for achieving high reflection loss. However, merely reflexive actions can also cause secondary pollution of EMW, which does not meet the actual application requirements and environmental protection standards. Therefore, the absorption function of EMW is an indispensable aspect in material design. For absorption loss, the primary mechanisms are magnetic loss and dielectric loss, which arise from interactions between the electromagnetic field and the electric or magnetic dipoles within the material. As indicated by Equation (4), with a fixed material thickness and EMW frequency, the absorption loss is proportional to both the electrical conductivity and the magnetism of the material. Consequently, incorporating a higher content of conductive and magnetic components can effectively enhance absorption performance. Multiple reflection loss generally refers to the loss that occurs when EMW is reflected and absorbed multiple times at material interfaces, then converted into heat energy. This loss mechanism usually requires a specific layered material structure to form a large number of adjacent layered interfaces. This is also a unique advantage that 2D materials possess in the field of EMW absorption.

In practical applications, the ability to effectively absorb EMW while minimizing reflection and transmission is crucial. Evaluating absorbing materials solely based on their SE does not accurately represent their real-world performance. The performance of absorption of EMW primarily depends on impedance matching, which reduces reflection and enables strong electromagnetic attenuation through absorption. According to Maxwell’s equations, the response of the absorber to EMW is closely related to the complex permittivity ($${\epsilon }_{r}$$) and the complex permeability ($${\mu }_{r}$$) [30]. The specific equations are as follows:

where $${\epsilon }^{\prime}$$ and $${\mu }^{\prime}$$ represent the real parts of the permittivity and permeability, respectively, reflecting the material’s ability to store electromagnetic energy. The loss factors $${\epsilon }^{\prime\prime}$$ and $${\mu }^{\prime\prime}$$ represent the corresponding imaginary parts, which characterize the material’s dissipation of EMW energy. To achieve optimal absorption performance and minimize surface reflection loss, the material’s input impedance must be matched to the free-space impedance, thereby maximizing the transmission of EMW into the material. When a transverse wave propagates in a homogeneous medium, the wave impedance is equal to the intrinsic impedance of the medium, which is denoted by the symbol Z_i. The calculation formula is as follows:

where $$\mu$$, $${\mu }_{0}$$, $${\mu }_{r}$$ represent the magnetic permeability of the material, the vacuum magnetic permeability, and the relative magnetic permeability, respectively. $$\epsilon$$, $${\epsilon }_{0}$$, $${\epsilon }_{r}$$ denote the permittivity of the material, the vacuum permittivity, and the relative permittivity, respectively. In order to accurately measure the absorption performance of EMW, the academic community introduced reflection loss (RL). The RL value is determined based on the relative complex permeability and relative complex permittivity at a specific frequency and material thickness. The specific formula is as follows [31,32]:

where P_I represents the incident power of the EMW, while P_R represents the reflected power of the EMW. Z_in and Z₀ respectively denote the absorption impedance and the free-space impedance. Usually, the RL value for measuring the absorption of EMW is negative. Therefore, the more negative the RL value is, the higher the reflection degree is. According to the single-layer absorber transmission line theory, Z_in can be defined as [33,34]:

where $$\gamma$$ represents the propagation constant of the EMW, j is the imaginary unit, and c is the propagation speed of the EMW. In an ideal absorption-dominant electromagnetic interference (EMI) shield, the ratio of input impedance to free-space impedance, |Z_in/Z₀|, should approach 1. This indicates that nearly all incident EMW enters the material and is dissipated without significant reflection. While achieving perfect impedance matching is challenging, a key design strategy for such EMI shielding structures is to use materials with closely matched values of μ_r and ε_r.

When evaluating the performance of the absorption of EMW, the attenuation capability of the absorber for penetrating EMW also needs to be taken into consideration. The stronger the material’s ability to dissipate energy, the easier it is to convert EMW into heat and dissipate it. Therefore, RL is always explained together with α, where α quantifies the attenuation capability of the structure [35,36]:

where ε₀ represents the vacuum permittivity. The above Equation (12) indicates that the attenuation constant of EMW is directly related to the complex permittivity and complex permeability. For dielectric loss, it dissipates the EMW energy through the movement of electric dipoles and charge carriers. Dielectric loss mainly consists of two main aspects: the conductive loss caused by the movement of electrons, such as jumping and migration, and the polarization relaxation loss, mainly including dipole polarization and interface polarization. From Equation (13) of the free-electron theory, the electrical conductivity of the material increases the conductive loss of EMW, thereby increasing the dielectric loss. For polarization relaxation loss, the Cole-Cole semicircle and Debye relaxation theory can be used to analyze these polarizations and the related relaxation phenomena [37,38,39,40]:

where $${\epsilon }_{s}$$ and $${\epsilon }_{\infty }$$ respectively represent the permittivity in static conditions and at infinite frequency. Additionally, τ is the relaxation time (in seconds). In this context, the relaxation time refers to the specific duration for a polarizing substance to transition from the polarized state to the normal state. $${\epsilon }_{p}^{\prime\prime}$$ and $${\epsilon }_{c}^{\prime\prime}$$ represent the energy dissipation of the material for EMW in the form of polarization and conduction, respectively. For 2D composite materials, dipole polarization is mainly caused by factors such as lattice defects and heteroatoms doping; interface polarization is mainly due to different hierarchical interface structures and heterogeneous structures at the interface surface. The dissipation of EMW within the shielding material is accompanied by various relaxation polarizations, which can be evaluated using the $${\epsilon }^{\prime}$$ − $${\epsilon }^{\prime\prime}$$ diagram. This diagram is based on the Debye theory and can be simplified using Equation (16).

The response of magnetic media to an electromagnetic field is manifested as magnetic loss, which encompasses hysteresis loss, natural resonance, domain wall resonance, exchange resonance, and eddy current loss. This serves as another key energy dissipation mechanism for EMW absorbers. Domain wall resonance generally occurs in the low-frequency range (1–100 MHz), while magnetic hysteresis loss is typically negligible under weak magnetic fields. When the magnetic field varies near a magnetic material, circulating currents—known as eddy currents—are induced within the material. These eddy currents generate an opposing magnetic field that counteracts the change in the original magnetic field. The interaction between these opposing magnetic fields eventually leads to energy dissipation and the subsequent generation of heat. In the 2–18 GHz frequency range, the formula for eddy current loss (C₀) can be expressed as follows [41,42,43]:

where μ₀ and t represent the vacuum conductivity and the diameter of the magnetic particles, respectively. When the frequency varies within the aforementioned range, the eddy current loss remains constant, and it largely depends on the electrical conductivity, magnetic permeability, and the diameter of the magnetic particles of the material. It is worth noting that when the frequency of the electromagnetic field is in harmony with the rotational motion of the magnetic moment around the equivalent anisotropic field, natural resonance occurs. According to the ferromagnetic principle, the natural resonance frequency governs the magnetic anisotropy of the material, which is commonly referred to as anisotropic energy. The specific relationship is as follows [44,45]:

where $${f}_{r}$$ represents the self-resonance frequency, γ is the spin magnetic moment ratio, and H_e represents the out-of-plane anisotropic field. Due to the small size effect and confinement effect, the natural resonance frequency increases significantly as the size of the magnetic particles decreases. Furthermore, similar to natural resonance, exchange resonance is also related to the size of the magnetic particles. Surface effects caused by small size also affect the frequency of exchange resonance. The specific equation is as follows [28]:

where f_e represents the exchange resonance frequency, μ_kn is the root of the derivative of the spherical Bessel function, C is the exchange constant, R is the particle radius, M_s is the saturation magnetization, H₀ is the strength of the applied magnetic field, and K₁ is the anisotropy constant of the crystal.

Due to the unique advantages of 2D materials in the absorption and shielding of EMW, some layered materials have been investigated, such as transition metal carbides, nitrides, or carbon nitrides (MXenes) [46,47,48], graphene [49,50,51], transition metal dichalcogenides [52,53,54], layered double hydroxide [55,56] and etc. These materials usually have multiple reflection losses for EMW, and may have some other loss characteristics, such as dielectric loss or magnetic loss. To meet the increasingly high requirements and EMW protection standards at present, many magnetic or conductive materials are applied to prepare composite 2D materials to achieve higher EMW absorption and shielding properties.

In the design of 2D EMW absorption and shielding materials, electrical conductivity serves as the fundamental parameter for achieving high-efficiency shielding performance, as it is essential for inducing EMW reflection. To prevent secondary pollution from reflected EMW, a common strategy is to encapsulate conductive 2D materials with insulating polymers, forming composites with porous structures—such as hybrid matrix films, foams, and aerogel. On the one hand, surfaces rich in pores and with good insulating properties allow EMW to effectively penetrate the material. On the other hand, uniformly dispersed 2D conductive materials can form a hierarchical conductive network, which supports multiple internal reflections of EMW. To ensure that the EMW is absorbed as thoroughly as possible inside the material, the combination of highly dielectric and highly magnetic components is essential. The structural design aligns with contemporary green and sustainable development principles and meets the practical demands of diverse application scenarios. Furthermore, if the 2D materials exhibit high dielectric properties but low electrical conductivity, conductive materials such as MXene or conductive polymers are incorporated to form a continuous conductive network within the composite. In addition, multilayer structures with gradient wave-impedance interfaces can be created by stacking different 2D conductive materials and controlling their interlayer spacing. Compared to the previously mentioned composites, such multilayer designs are not constrained by requirements for uniform dispersion or polymer compatibility, allowing for more precise control over the microstructure and morphology of the 2D materials.

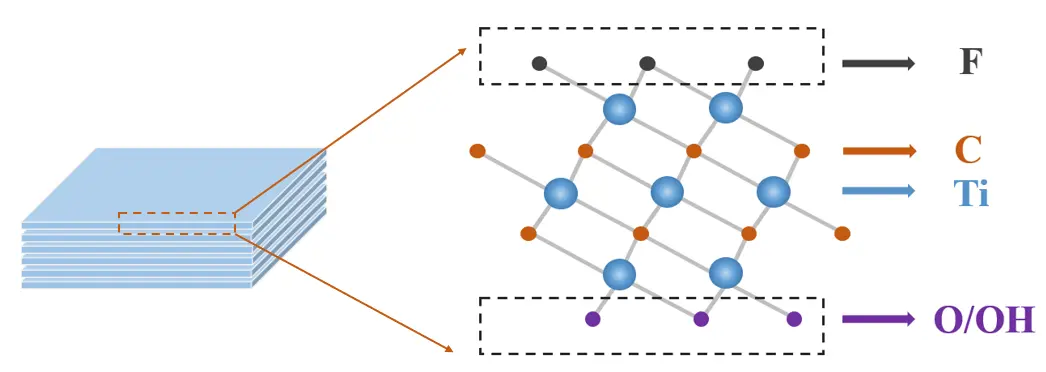

The general formula for MXenes is M_n+1X_n, where M represents a metal from the early transition metals, X can be carbon, nitrogen, or both, and n can be any of the numbers 1, 2, or 3. Generally, the single-element type MXenes without vacancies, such as Mo₂C and Ti₃C₂, are the most common types in previous reports [57,58,59,60]. Among them, functionalized Ti₃C₂T_x with variable terminal groups (such as -O, -OH, -F) is a research hotspot in MXene (Figure 2). The core feature of MXene lies in its unique layered structure, adjustable surface chemistry, and excellent electrical conductivity. The material’s electrical conductivity contributes to EMW absorption by enhancing dielectric loss, while simultaneously increasing reflection loss, thereby providing effective electromagnetic shielding. The conductivity of MXene ranges from 5 to 2000 S/cm, which completely meets the requirements for high conductivity [61,62].

Malik et al. [63] prepared flexible, cost-effective, and lightweight electromagnetic shielding composites via solution casting. The composites were achieved by incorporating varying loadings of MXene into a 50:50 blend of polyethylene-methyl acrylate (EMA) and ethylene-octene copolymer (EOC). The characterization results showed that even though the MXene was non-uniformly distributed within the polymer and there was no chemical interaction between MXene and the polymer matrix, the composite material still exhibited excellent crystallinity and conductivity. At room temperature, its maximum AC conductivity at 3 GHz was 19.63 S/m with the loading of Ti₃C₂T_x was 15 wt%. This high conductivity resulted in an SE of up to 60.85 dB when the sample thickness was 0.5 μm. However, while high reflectivity brought about high SE, it also caused secondary pollution due to reflected waves. Meanwhile, the direct mixing approach also failed to fully utilize the advantages of the multi-layer structure of MXene.

The multilayer structure of MXene shows a big potential for multiple reflections and absorption of EMW. Therefore, the rational design of the interlayer structure of MXene in the composite material and its uniform dispersion can effectively reflect and absorb EMW multiple times, presenting a better SE. Chen et al. [64] used polymethyl methacrylate (PMMA) microspheres as templates to initially composite with pre-layered MXene through electrostatic assembly, and then prepared three-dimensional lightweight porous Ti₃C₂T_x MXene films by in-situ pyrolysis. The experimental results showed that the Ti₃C₂T_x MXene film had excellent electrical conductivity (470 S/m). The Ti₃C₂T_x MXene film exhibited excellent shielding performance in 18–26.5 GHz, with an excellent attenuation of over 60 dB, which was 1.5 times that of the Ti₃C₂T_x sheet under the same conditions. The combined effect of conductive loss, multiple reflection absorption, and interface polarization ensured the EMW shielding performance of the fabricated material. The preparation method solved the problems of stacking and agglomeration of 2D materials, thereby representing a promising, green, environmentally friendly strategy.

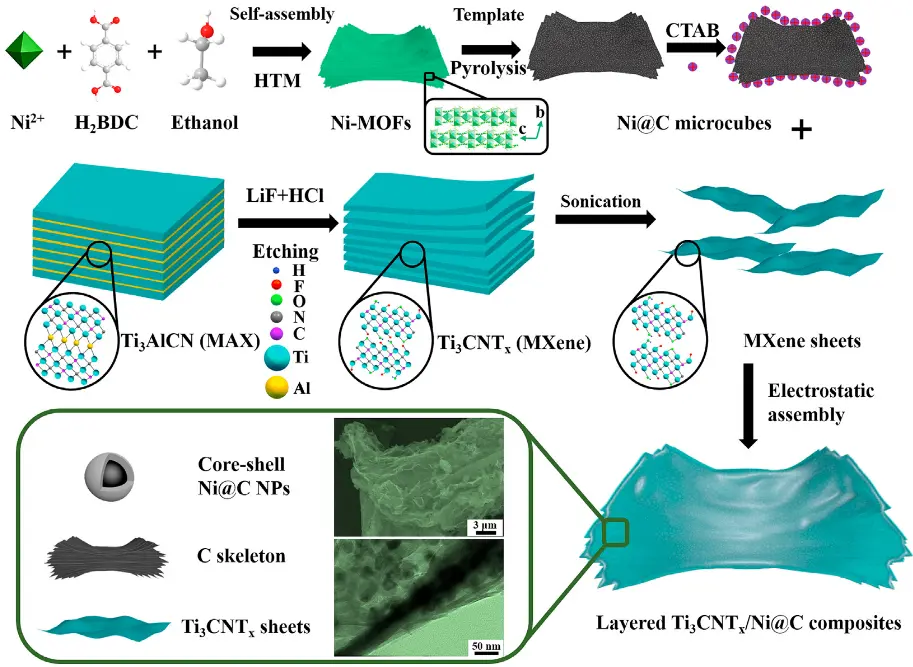

In order to further enhance the EMW absorption performance, more complicated structured MXene composites were explored. Zhang et al. [65] combined the MXene layer with three-dimensional (3D) carbon nanotube sponges to fabricate an EMW shielding material with dual control over structure and electromagnetic properties. The different pore diameters on the surface of carbon nanotubes effectively increased the path of EMW incidence and reduced direct reflection. The incident EMW was reflected by the underlying MXene layer and further attenuated by absorption within the internal structure of the carbon nanotubes. This synergy resulted in a highly effective shielding material characterized by strong absorption and minimal reflection. Performance tests indicated that the composite achieved a SE up to 90 dB at 18 GHz with a reflectivity as low as 0.31—approximately 64% lower than that of the pristine carbon nanotubes. The facts prove that electromagnetic regulation strategy through surface engineering can achieve an enhancement in SE and a reduction in reflectivity without involving complex synthesis processes, which meet the requirements of various intelligent shielding materials for high absorption rate, low reflectivity, and flexible shielding mechanisms. Xiang et al. [66] proposed a new controllable assembly strategy to construct nano/microstructured 2D MXene encapsulated Ni@C layered microcubes (Figure 3), in which they took the self-assembly of 2D metal–organic framework (MOF) templates and the thermal decomposition of electrostatical 2D Ti₃CNT_x thin sheets. Attributed to multi-interface architecture, high defect density, excellent electrical conductivity, notable nuclear magnetic resonance response, and layered porous structure, the prepared composite material achieved outstanding EMW absorption and shielding performance. Experimental results demonstrated that the Ti₃CNT_x/Ni@C composite attained a broad effective absorption bandwidth (EAB) of 5.4 GHz along with strong absorption reaching 65.7 dB. Moreover, the synthesized layered composite exhibited remarkable joule heating capability and multifunctionality, including fire resistance, thermal insulation, and infrared shielding, making it suitable for practical applications in harsh environments.

Besides the structured MXene composites, other composite materials have also been successfully prepared by combining MXene with conductive polymers [61], metal powders [67], ferrites [68] and etc. Adding new materials without reducing the conductivity of MXene to enhance the EMW absorption and shielding performance of the raw material, or endowing the raw material with new functions by multifunctional integration, becomes a new and effective approach to meet the current demand for high EMW protection.

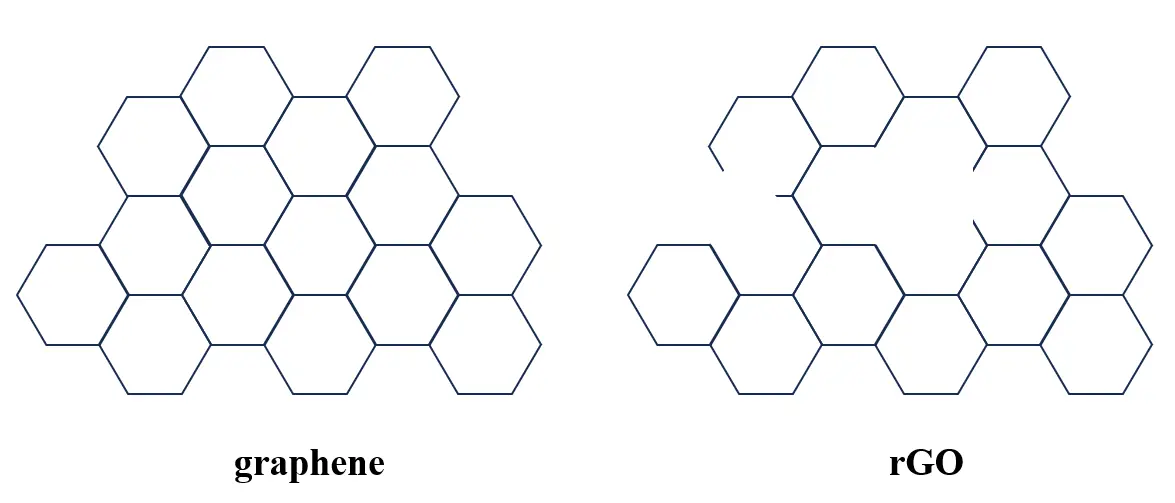

Graphene is a nanomaterial with a honeycomb-like hexagonal lattice and hybridized sp² orbitals (Figure 4). Due to its high thermal conductivity (5000 W/mK), high electrical conductivity (6000 S/cm), large surface area, and remarkable stability in chemical and thermal environments, graphene has attracted extensive attention in vast fields. Incorporated into polymer composite materials, graphene can be used as an excellent conductive and lightweight material for EMW absorption and shielding [69,70,71].

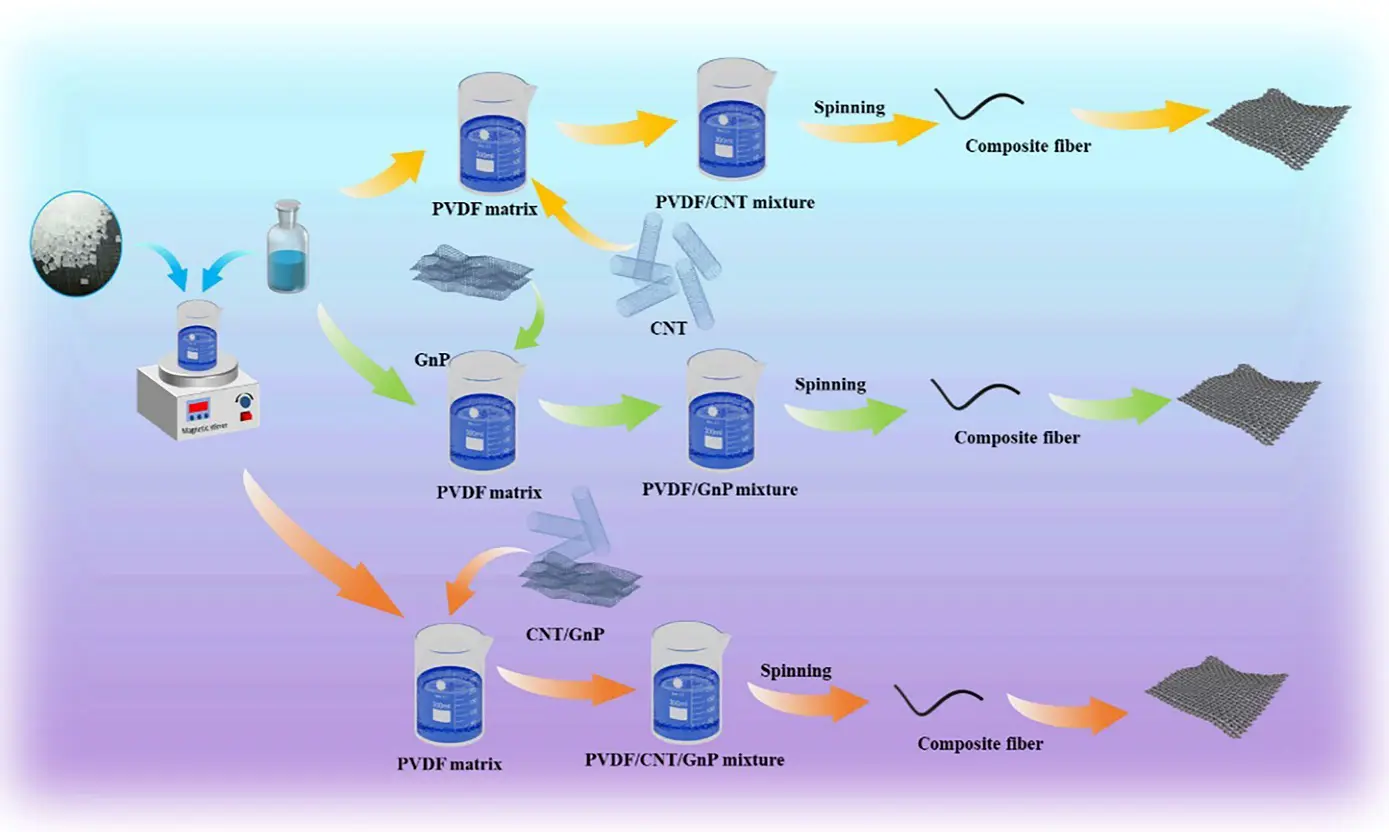

He et al. [72] demonstrated a green strategy method without solvent melt treatment. By mixing nanofillers to design custom PVDF composite materials, they obtained high EMW SE with low filler loading (Figure 5). The multi-scale structure design utilized the one-dimensional (1D) ballistic electron highway of carbon nanotubes and the 2D charge polarization interface of graphene nanoplates (GnPs). Through a 3D permeable conductive network and a directional heterogeneous interface, they established a dual-phase electromagnetic synergy, achieving multi-scale EMW scattering. The synergistic effect between CNTs and GnPs not only optimized impedance matching but also constructed a continuous conductive network, thereby improving EMW reflection loss. This combination leveraged interface polarization from heterogeneous structures and intrinsic dielectric loss, enabling multiple reflections and absorption of EMW. The resulting PVDF/CNT/GnP ternary composite exhibited a SE of 23.4 dB in the X-band. Similarly, Taymaz et al. [73] prepared 1D CNTs and 2D GNPs-functionalized regenerated cellulose aerogels (RCA) through simple methods such as freezing, solvent exchange, and environmental drying. To improve EMW absorption, a conductive network was set up within the cellulose matrix by capitalizing on the synergistic interaction between CNTs and GnPs. This network induced interface polarization loss due to the conductivity contrast between the conductive network and the cellulose matrix. The prepared hybrid aerogel exhibited a peak SE of 40.2 dB.

Graphene can be converted into reduced graphene oxide (rGO) through chemical oxidation and reduction. The rGO nanosheets possess a large number of lattice defects and oxygen-containing groups, which not only provide good dielectric loss but also can adsorb and fix metal particles to offer additional EMW absorption loss [74,75]. Yao et al. [76] proposed a straightforward strategy for tailoring dielectric and magnetic “genes” to optimize performance in EMWAS and electrochemical lithium storage. The optimized NiO@NiFe₂O₄/15rGO composite benefited from its structural and compositional merits, obtaining a SE of 8.69 dB. Moreover, NiO@NiFe₂O₄/15rGO demonstrated superior electrochemical lithium storage capability, suggesting its potential for harvesting and storing wasted EMW energy to charge lithium-ion batteries. Yan et al. [77] fabricated a highly conductive nickel foam/wood lignin/rGO dual-network scaffold (LGN) through vacuum-assisted adsorption, freeze-drying, and thermal annealing. Owing to its excellent electrical conductivity (1597.5 S/cm), the PLGN composite got a high SE of 69.9 dB in the frequency range of 8.2–12.4 GHz, indicating strong potential for mitigating electromagnetic interference in electronic devices. High electrical conductivity of GO and the interface polarization of dielectric materials enabled the formed conductive network to have excellent effects on EMW reflection and absorption.

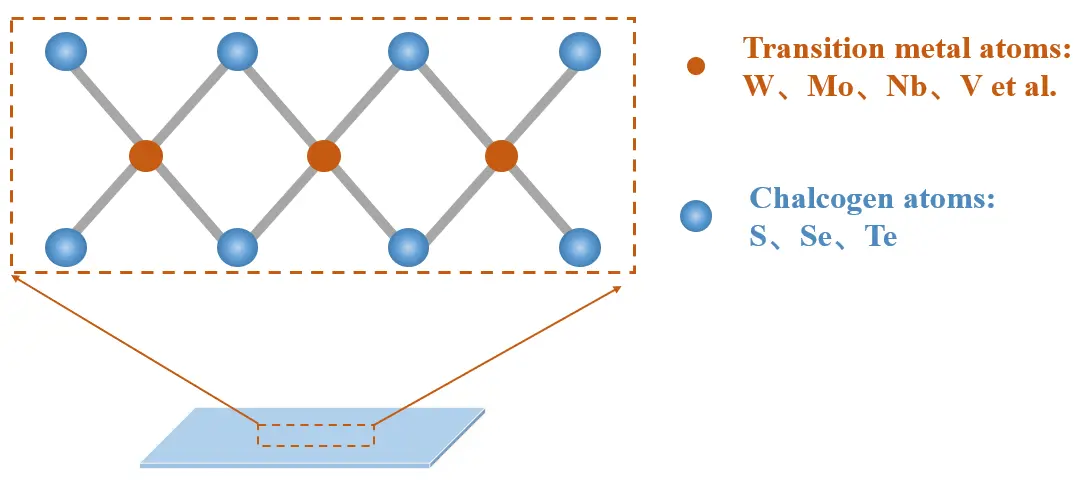

Transition metal dichalcogenides (TMDCs), represented by the empirical formula MX₂ (where M = W, Mo, Ti, etc.; X = S, Se, Te, etc.), constitute a class of emerging materials with diverse application potential (Figure 6). Their typical layered structure, active surface sites, and abundant defects offer a substantial chance for polarization effects. Recently, TMDCs have gained much attention as promising EMW absorption and shielding materials [78,79,80].

Sharma et al. [81] utilized a unique method of water vapor-induced phase separation to fabricate a microporous structure of layered rGO/molybdenum disulfide reinforced TPU foam. Their results showed that the total SE of the 7 wt% rGO/MoS₂/TPU foam was 32 dB. The foam material’s layered heterogeneous structure promoted the formation of electric dipoles and facilitated efficient carrier hopping. Combined with the multiple internal reflections induced by its micro-porous architecture, the prepared foam achieved a maximum wave attenuation of 99.9% and a significant absorption-dominated shielding contribution, accounting for 92% of the total SE. Zhu et al. [82] successfully synthesized a multifunctional WSe₂/Co₃C composite material with a multi-dimensional structure through the hydrothermal method. The prepared material exhibited excellent electromagnetic properties with a rich electromagnetic response mechanism. Benefiting from the synergistic contribution of dielectric and magnetic losses, the WSe₂/Co₃C composite displayed outstanding EMW SE, obtaining an average SE of 28.97 dB, which accounted for approximately 70% of its total attenuation. The SE_A contributed over 80% of the SE, significantly reducing the reflection of electromagnetic waves. Ghosh et al. [83] explored a cross-dimensional composite system composed of dielectric phase and magnetic phase (WS₂/dual-phase lithium iron oxide) for EMW shielding applications. WS₂, a 2D material with distinctive dielectric properties and sheet-like morphology, exhibited a pronounced surface effect. In contrast, the dual-phase lithium iron oxide nanocomposite possessed a crystalline structure and higher magnetic loss. Incorporating WS₂ into the dual-phase lithium iron oxide markedly enhanced the overall SE of the nanocomposite. Results indicated that the composite held a maximum SE of 55.6 dB at 12.4 GHz.

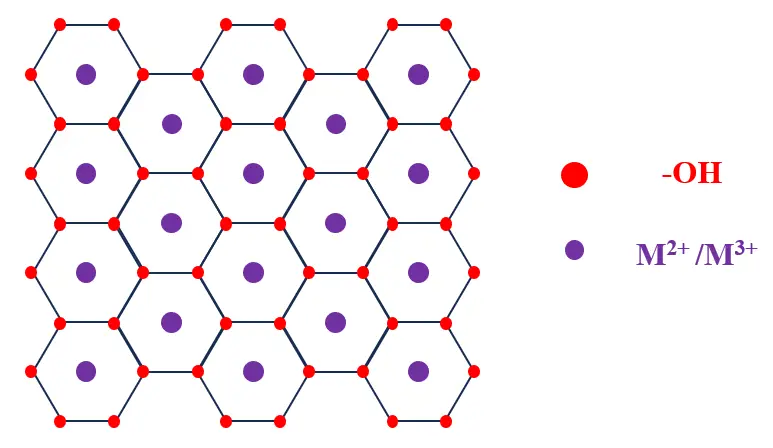

Layered double hydroxide (LDH) is a new type of 2D inorganic layered nanomaterial, which is a natural or artificially synthesized anionic clay. Its general formula is [M^II_1−x M^III_x (OH)₂]^x+ (Aⁿ⁻)_x/n·yH₂O, where M^II and M^III represent divalent and trivalent ions, respectively, Aⁿ⁻ denotes an anion, and x corresponds to the molar ratio M^III/(M^II+M^III) (Figure 7). LDHs take advantage of high quality, low cost, good thermal stability, and environmental friendliness. LDH is widely used in many fields such as adsorption, catalysis, and stabilizers. In addition, the unique layered structure of hydrotalcite easily forms multiple interfaces, which can obviously enhance the loss of EMW [84,85,86].

Lyu et al. [87] developed a multifunctional cotton fabric (PPy/NiCoAl-LDH/cotton) with a layered array architecture. They initially grew NiCoAl-layered double hydroxide (NiCoAl-LDH) nanosheet arrays on cotton fibers, and subsequently conducted in-situ polymerization to deposit a continuous and dense conductive polypyrrole (PPy) layer. The resulting fabric exhibited excellent SE of 38.83 dB, as well as notable flexibility and durability. Duan et al. [88] took in situ growth of LDH on the surface of MXene through electrostatic self-assembly, resulting in an approximately 5 μm-diameter ball-shaped intermediate product (LDH@MXene). The prepared LDH@MXeneHT500 material showed soft magnetic behavior, which promoted the transport of induced charges and facilitated the dissipation of electromagnetic energy. As a result, the LDH@MXeneHT500 nanohybrid obtained a high SE of 47.2 dB in the X-band. To extend its applicability, a polydimethylsiloxane (PDMS)/LDH@MXeneHT500 nanocomposite was further developed. The composite demonstrated improved mechanical strength (9.48 MPa) and effective electromagnetic protection, sustaining an electromagnetic wave shielding effectiveness above 50 dB over the 3–18 GHz frequency range.

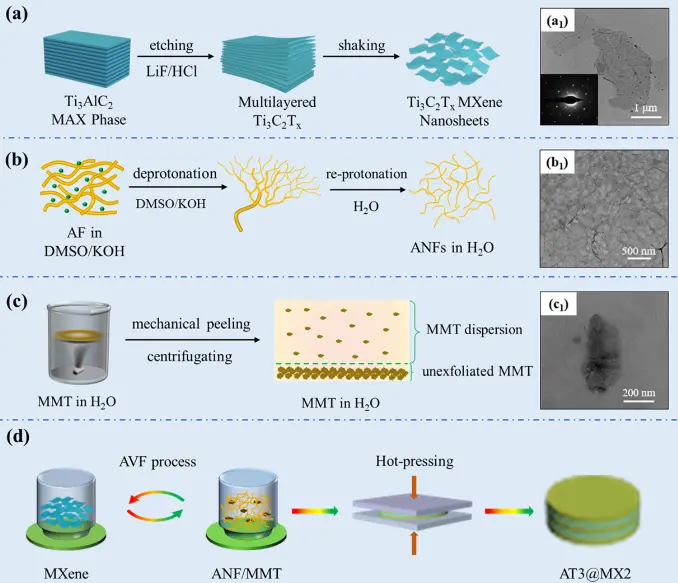

In addition to the materials mentioned above that are widely used, some other two-dimensional materials have also been employed in the fields of electromagnetic wave absorption and shielding, such as black phosphorus [89], hexagonal boron nitride [90,91,92,93], 2D-MOF [94,95,96,97], etc. The relevant data from reports in the literature are listed in Table 1. The respective characteristics of different materials and their approaches in the structural design of composite materials are presented (Table 1). Artificially synthesized two-dimensional materials have demonstrated excellent performance in the field of electromagnetic wave protection [98,99,100,101,102]. In some cases, the complex preparation methods, high cost of raw materials, and the significant environmental impact of solvent use may have significant impacts on industrial applications [103,104,105,106,107]. Research is now increasingly focused on developing alternative, low-cost raw materials and greener synthesis routes.

Mineral-based EMW absorption and shielding materials have emerged as a research focus in EMW protection, owing to their outstanding EMW absorption and shielding performance, robust mechanical properties, and strong thermal and oxidation resistance. Among them, 2D natural mineral materials like montmorillonite (MMT), graphite, talc, mica, and hydrotalcite have unique advantages in this field due to their highly adjustable electromagnetic parameters. Surprisingly, they can precisely control impedance matching through structural design. This characteristic enables the mineral-based materials to take “low reflection and high absorption” effects over a wide frequency range. Once electromagnetic waves enter the material, they will be converted into heat energy through mechanisms such as dielectric loss (such as interface polarization, dipole relaxation) and magnetic loss (such as natural resonance, eddy current effect), which is crucial for applications that require eliminating electromagnetic waves, such as radar stealth and electromagnetic compatibility [132]. In addition, the layered structure of 2D mineral materials provides them with unique advantages in EMW absorption and shielding. By taking advantage of the layered properties of natural minerals, they can even be separated into 2D sheets through physical or chemical methods. The sheet structure can increase the propagation path of EMW within the material, allowing them to be reflected and absorbed multiple times, thereby greatly enhancing the shielding effect.

Compared with traditional metal-based or carbon-based materials, these 2D layered structures derived from natural minerals not only possess low density, high flexibility, and good processing adaptability, but also can achieve efficient attenuation, multiple scattering, and loss conversion of EMW through nano-scale structural design (such as layer-by-layer assembly, intercalation composite, construction of three-dimensional networks, etc.) in coordination. Although natural minerals are widely available, their inherent properties may not be sufficient to meet the demands of high-end applications, so functional modification is required.

Through the direct carbonization method, Wang et al. [133] prepared a phenolic resin-based carbon foam composite material with a hierarchical porous structure for the first time by combining carbon nanotubes and 2D montmorillonite (MMT) as multi-scale reinforcing agents with hollow microspheres. The composite material (5 wt.% MMT) exhibited remarkable characteristics of multifunctional synergistic strengthening. Its compressive strength reached 8.54 MPa, which was 116% higher than that of pure carbon foam. The SE at the X-band was as high as 65 dB, and the shielding mechanism was mainly absorption. The prepared material integrated high strength, high electromagnetic shielding, and good heat insulation, making it an ideal multifunctional material for thermal protection. Dang et al. [134] employed an alternating vacuum-assisted filtration (VAF) process to fabricate a multifunctional 2D MMT/aramid nanofibers@MXene (MMT/ANFs@MXene) nanocomposite with an alternating multilayer architecture (Figure 8). They designed a structure where the “MXene layer (conductive layer)” and the “AT layer (ANFs/MMT, mechanical reinforcement and insulation protection layer)” were alternately superimposed. The prepared composite material had high mechanical strength (tensile strength of 154.66 MPa, strain of 14.22%), excellent EMI SE (58.4 dB), as well as strong fire-resistant protection performance. Even after burning for 30 s, it still maintained an SE of approximately 34 dB. Generally, structural design with precise functional modification can collaboratively optimize the mechanical, electromagnetic shielding, joule heating, and flame retardant properties within a single system.

Jiang et al. [135] employed a simple, green, and cost-effective mechanical mixing heating compression molding method to initially prepare a 2D natural graphite/UHMWPE EMW shielding composite material with a typical “isolation structure”. This process did not need high-strength dispersion or any organic solvents. Graphite particles were selectively distributed on the polymer polyhedral interfaces, thereby constructing an efficient isolation structure conductive network. The product achieved an outstanding SE of up to 51.6 dB even with a low graphite content. Its electromagnetic shielding mechanism was mainly based on absorption. Importantly, the uniqueness of this research lies in the successful production of high-performance electromagnetic shielding material using inexpensive micron-sized natural graphite through structural design rather than increasing the filler dosage. The progress may open up more new routes for the effective utilization of economical fillers in functional composite materials.

In recently years, more and more 2D mineral materials have been explored to create mineral-based EMW absorption and shieldingmaterials for the absorption and shielding of electromagnetic waves. Table 2 lists the shielding performances of several typical 2D mineral-based EMW absorption and shielding materials. It can be seen from the table that the combination of mineral materials with magnetic or conductive materials is currently a research trend. Moreover, most composite materials possess additional functionalities such as flame retardancy and high strength, and there is a growing tendency towards multifunctional integration, which is very important for the future development of highly efficient EMW absorption and shielding.

To ensure electromagnetic compatibility and information security, 2D EMW absorption and shielding materials, as the key functional materials, are critical in multiple cutting-edge fields with strict requirements for the electromagnetic environment, such as electronic and electrical equipment, aerospace, medical treatment and health, personal protection, and military defense. Among all the aforementioned areas, the military and defense sector has the most stringent requirements for shielding performance, which not only aims at high SE across a wide frequency band, but also needs to consider aspects such as stealth, radiation resistance, extreme environment adaptation, and multifunctional integration [138,141]. It is the core driving force and verification platform for promoting 2D microwave shielding materials towards high performance, lightweight, and intelligent directions, and holds crucial strategic significance.

In the field of electronic and electrical equipment, the issue of electromagnetic compatibility (EMC) has become increasingly prominent. 2D shielding materials, with their flexible controllable electromagnetic properties and adaptable structural designs, perfectly match the development needs of modern electronic devices for integration and miniaturization. These materials are mainly used to protect the internal precision electronic components of the equipment from external EMW. They can effectively suppress the electromagnetic radiation and leakage generated by the equipment during operation, and ensure the quality of signal transmission and the stability of system operation.

Lu et al. [142] adopted a method combining mechanical mixing with subsequent chain extension to prepare a series of environmentally friendly and renewable water-based polyurethane (ADWPU)/2D MXene composite films based on castor oil used for EMW protection products. They mixed MXene nanosheets with WPU emulsion containing dynamic and reversible disulfide covalent bonds, constructing a controllable, similar to isolation, and conductive network within the material to protect the internal materials from EMW interference. Due to the disulfide exchange effect, the composite material obtained a mechanical strength of 15 MPa even when the elongation at break is relatively low, and it possessed self-repairing and shape-memory properties. Zhao et al. [143] uniformly fixed high-purity 1T phase 2D MoS₂ petals on the wrinkled surface of rGO, successfully synthesizing 1T-MoS₂@N-rGO nanocomposite. It effectively optimized impedance matching by fixing the 1T-MoS₂ petals and synergized multiple EMW attenuation mechanisms, thereby achieving “thin, wide, and strong” high-performance absorption. These characteristics are capable of meeting the demands of highly flexible and lightweight products.

In the field of personal protective, the increasingly complex electromagnetic radiation environment demands efficient electromagnetic shielding. Electromagnetic radiation may pose potential hazards to human health. Therefore, designs of new shielding materials are optimizing the fillers and innovating the structures to provide technical paths for protective equipment, which combine high performance with wearability to ensure the safety of personnel.

Xiang et al. [144] used the electrostatic self-assembly method to embed the 1D CNTs/Co nanocomposite in the form of a sea urchin shape into the 2D Ti₃C₂T_x MXene layer, successfully preparing Ti₃C₂T_x/CNT/Co cobalt nanocomposite with a 2D/1D/nanodimensional hierarchical structure. The polydimethylsiloxane thin layer forms a hydrophilic layered Ti₃C₂T_x/CNTs/Co hydrophobic structure, which prevented the degradation/oxidation of MXene under high humidity conditions. Moreover, the Ti₃C₂T_x/CNTs/Co film exhibited excellent photothermal conversion performance, with high thermal cycling stability and sustainability. Zhang et al. [145] employed electrospinning technology to load zero-dimensional Fe_0.64Ni_0.36 magnetic nanoparticles onto 2D MXene nanosheets and simultaneously embed them into 1D carbon nanofibers, thereby constructing a novel Fe_0.64Ni_0.36/MXene/CNFs flexible nanofiber membrane with a multi-component heterogeneous structure network. As a result, this electromagnetic protection fabric not only exhibited outstanding radiation-shielding performance but also possessed high flexibility, hydrophobicity, and low density. These are indispensable elements for improving personal protective measures.

Aerospace vehicles have extremely strict requirements for the properties of materials. They must possess characteristics such as “lightweight, high strength, resistance to extreme environments, and multi-functionality”. 2D natural mineral materials, with their inherent lightweight properties and the advantage of functional design, can precisely meet these challenges. These materials are mainly used in aircraft to protect sensitive avionics systems and may be used for functions such as stealth or thermal management.

Fan et al. [146] employed a straightforward strategy of integrating highly conductive 2D Ti₃C₂T_x MXene nanosheets with GO, successfully fabricating a highly conductive MXene/GO composite foam via freeze-drying and heat treatment. Based on a 3D network structure with low density and high porosity, by taking advantage of its high conductivity and the internally connected porous structure, it promoted the effective attenuation of EMW and realized a perfect combination of lightweight, high conductivity, and high specific shielding efficiency. As noticed, this kind of highly promising EMW shielding material holds broad application potential in aerospace. Zhang et al. [147] successfully synthesized a CoNi@Ti₃C₂T_x MXene composite material with a 0D/2D hybrid structure by depositing CoNi nanoparticles on both sides of MXene through the hydrothermal method. Combined with the unique 0D/2D structure, enhanced interface polarization, magnetic coupling effect, and multiple scattering mechanism, the prepared material obtained outstanding comprehensive performance, namely “strong absorption, wide bandwidth, and moderate thickness”. The lightweight and high-strength materials effectively reduced the design difficulty of the new generation of aircraft, making them a hot topic of current research.

As for medical treatment and health, the application of EMW absorption and shielding materials mainly focuses on two aspects: one is to protect highly precise medical diagnostic equipment (such as MRI and CT) from external electromagnetic noise, ensuring imaging quality; the other is to protect the human body or specific medical environments, reducing the potential impact of electromagnetic radiation. Due to the characteristics of certain natural clay minerals and their ability to be processed into flexible films, they demonstrate great potential in this field. Through functionalization design, these materials can be made into flexible shielding fabrics, shielding coatings, or shielding room materials, achieving local or overall electromagnetic protection while ensuring safety and comfort.

Antonez et al. [148] employed a unique polishing technique to cut, bond, and finely polish the 2D natural shungite stone (a type of shale rich in GO) rock, and then fabricated ultra-thin flexible GO-rich shale shielding plates with a thickness of only 10 to 20 μm. The most outstanding feature of this material was that it integrated the natural structure, ultra-thin thickness, excellent flexibility, and outstanding comprehensive shielding performance (combining efficient reflection and absorption capabilities) into one, demonstrating great potential as a green, low-cost, and durable next-generation flexible electromagnetic protection coating. Liu et al. [149] adopted a collaborative strategy of integrating in-situ growth, vacuum-assisted filtration, and self-reduction to successfully prepare a multi-level hierarchical structure composed of Fe₃O₄-Fe nanoparticles/carbon nanofibers/2D aluminum-Fe₃O₄-Fe nanosheets composite materials. The multi-level hierarchical structure design enabled the integration of the material’s multiple functions and the exertion of their respective effects, which was beneficial for the precision instruments and the protection of human health.

In military defense, the control of EMW is one of the core capabilities, involving multiple key aspects such as stealth, anti-interference, and information security. Through specific functionalization and structural design, 2D materials can be utilized to develop new-generation wide-band, lightweight, and weather-resistant stealth coatings, camouflage nets, or electromagnetic shielding compartments for military equipment, thereby enhancing the survival capabilities and combat effectiveness of weapons and equipment.

Shan et al. [150] prepared three 2D MOF materials with inherent electrical conductivity, M₃(HHTP)₂ (where M = copper, zinc, and nickel). Among them, Cu₃(HHTP)₂, which had higher electron conductivity and a hexagonal prism rod-like morphology, exhibited the best performance. Under a matching thickness of 2.1 mm, its minimum reflection loss reached −56.45 dB, with an EAB of up to 5.76 GHz, covering the entire Ku band and having potential applications in the military field. Wu et al. [151] successfully prepared 2D MoS₂/CoNi heterojunction composite materials by combining the ion insertion technique with the simple hydrothermal method. The minimum RL of all samples was lower than −50 dB. This composite material achieved impedance matching through the cooperative construction of the heterojunction and simultaneously enhanced multiple loss mechanisms. These progresses provide a highly promising technical path for the development of low-cost, customizable, lightweight, and broadband absorbing materials, especially for the design of protective materials for high-tech weapons.

Owing to their distinctive layered structure, abundant surface functional groups, and high specific surface area, 2D materials have been successfully employed in EMW absorption and shielding applications. This review elaborates on the fundamental mechanism and material structure aspects that explain why 2D materials can significantly enhance the attenuation of EMW. Existing practices have shown that the multiple reflection losses of the multi-layer structure require the combined effect of reflection by conductive materials and absorption by dielectric materials. Consequently, combining multiple materials has become a prominent research focus in the field of 2D materials. In material design, a porous surface is essential to reduce the direct reflection of EMW and enhance their absorption. The porous structure can trap incident EMW within the material, thereby preventing their secondary pollution. Moreover, the high conductivity of the material should be concentrated in the interior and the bottom to prevent direct reflection while increasing the conductive loss of electromagnetic waves. Meanwhile, the high conductivity of the material greatly enhances the multiple internal reflections of EMW. Most importantly, the interface polarization loss generated at the interfaces of the 2D material and its internal defects, as well as the polarization loss arising from the integration of magnetic or conductive components, constitute the key mechanisms for EMW absorption. The combination of 2D multiple reflections and absorption can achieve a high absorption rate and a high SE for EMW, and also enable efficient conversion of energy.

Although encouraging progress has been made in the development of 2D electronic-warfare protection materials, the following aspects for further research are still required to accelerate and expand the application of EMW absorption and shielding technology.
