Powder-Based Additive Manufacturing of Ti₂AlNb Alloys: A Review of Processes, Microstructure and Mechanical Properties

Ti₂AlNb alloy exhibits exceptional high-temperature specific strength, favorable high-temperature oxidation resistance, and outstanding creep resistance, showing broad application prospects in aerospace [1,2]. It is an ideal high-temperature-resistant lightweight metallic material for achieving lightweight and high-performance aircraft structures [3]. This alloy can stably maintain high strength and excellent creep resistance within the high-temperature range of 650–900 °C. Meanwhile, its density is only 5.3–6.0 g/cm³, approximately 40% lower than that of conventional nickel-based superalloys. Owing to its significantly superior specific strength, which can effectively reduce aircraft structural weight and lower energy consumption [4,5]. Compared with existing high-temperature titanium alloys, Ti₂AlNb alloy exhibits greater advantages in high-temperature strength and oxidation resistance, and is widely recognized as one of the most promising candidate materials for key hot-end complex components in advanced aero-engines [6]. Nevertheless, the ordered orthorhombic O-phase in Ti₂AlNb alloy, while endowing it with excellent high-temperature properties, also introduces inherent challenges such as limited room-temperature slip systems, high deformation resistance, and a narrow hot-working window [7], posing significant difficulties for the forming and manufacturing of its components. When the traditional “casting and forging + machining” route is adopted to fabricate Ti₂AlNb alloy components, it involves cumbersome process flows, high manufacturing costs, and extremely low material utilization. Moreover, defects such as cracking and deformation easily occur during processing, and the integrated forming of complex structural components is particularly difficult to achieve. This conventional approach can no longer satisfy the manufacturing requirements for complex components in the aerospace field [8,9,10].

Powder-based additive manufacturing, as an advanced technology, breaks through the bottlenecks of conventional manufacturing. Among various additive manufacturing technologies, the mainstream powder-based processes take powder as the raw material and fabricate three-dimensional solid components through layer-by-layer powder deposition, which is precisely guided by computer-aided design (CAD) digital models. This provides a breakthrough technical pathway for the high-performance fabrication of complex Ti₂AlNb alloy components. This technology can not only increase material utilization to more than 80%, greatly shorten the manufacturing cycle, and reduce production costs, but also offer extremely high design freedom. By optimizing the microstructure of components through forming process control, it simultaneously improves their comprehensive mechanical properties, providing key manufacturing support for the upgrading and renewal of aerospace power systems and airframe structures [11,12,13]. At present, according to different powder delivery modes (powder feeding and powder spreading), powder-based additive manufacturing technologies can be divided into Directed Energy Deposition (DED) and Powder Bed Fusion (PBF) [14]. Research on Ti₂AlNb alloy powder-based additive manufacturing has mainly focused on mainstream technical routes such as Selective Laser Melting (SLM) [6], Selective Electron Beam Melting (SEBM) [15], and Direct Laser Deposition (DLD) [16]. These powder-based additive manufacturing technologies exhibit unique advantages in the fabrication of extremely complex structures and rapid prototyping, and can precisely meet the forming requirements of core hot-end complex components in aero-engines.

In addition to powder-based additive manufacturing, wire-based processes, such as wire arc additive manufacturing (WAAM), have been explored for the fabrication of Ti₂AlNb alloys. Recent studies have made preliminary progress using strategies such as single-wire preheating [17], dual-wire in-situ alloying [18,19], and hot-wire assistance [20]. While these attempts have yielded exploratory progress, wire-based process characteristics still bring inherent challenges such as microstructural inhomogeneity, obvious mechanical anisotropy, high hot-cracking sensitivity, and elemental segregation. These issues are closely associated with the ultra-high heat input and slow cooling rate inherent to the WAAM process, which easily trigger excessive grain coarsening and the precipitation of brittle, detrimental phases, leading to a relatively narrow processing window. For these reasons, the quality and performance consistency of as-fabricated components remain far below the demanding requirements of engineering applications. Against this background, powder-based additive manufacturing technologies, featuring smaller molten pool sizes, higher cooling rates, and greater flexibility in powder composition design, remain the core focus of this review and represent the most promising route for preparing high-performance Ti₂AlNb alloys.

Although powder-based additive manufacturing offers distinct merits, its adoption in fabricating Ti₂AlNb alloys still faces multiple key scientific and technical challenges. First, Ti₂AlNb alloys show high sensitivity to thermal cycles, rendering metallurgical defects prone to form during layer-by-layer rapid melting-solidification process. Precise regulation of processing parameters to mitigate defect generation is essential for guaranteeing component quality. Second, the rapid non-equilibrium solidification profoundly influences the size, morphology, and distribution of typical phases (e.g., O-phase and B2-phase). Since mechanical performance is intrinsically governed by microstructure, the inherent process–microstructure–property correlation requires further systematic exploration. Furthermore, well-designed post-process heat treatments are vital for tailoring phase constituents, enhancing microstructural stability, and improving overall mechanical performance, with relevant technical systems yet to be fully established and optimized.

To address these gaps, this paper systematically compares and analyzes the forming characteristics, microstructural evolution, and mechanical property differences among three mainstream powder-based additive manufacturing technologies—selective laser melting, selective electron beam melting, and direct laser deposition. It elucidates the regulatory mechanisms of thermal cycling characteristics from different processes on the phase composition, grain morphology, and mechanical properties of Ti₂AlNb alloys, and further discusses their forming principles, process characteristics, microstructure formation mechanisms, mechanical property regulation strategies, and control methods for typical defects of each technology. Meanwhile, the key scientific and technical bottlenecks currently encountered in the powder-based additive manufacturing of Ti₂AlNb alloy are identified, and the future research directions and development trends in this field are prospected. It is expected to provide references for the in-depth investigation, process optimization, and engineering application of powder-based additive manufacturing technologies for Ti₂AlNb alloy components.

The chemical composition of Ti₂AlNb alloys typically covers a range of Ti-(18–30 at.%) Al-(12.5–30 at.%) Nb. Researchers [21,22,23] have systematically explored the performance optimization of Ti₂AlNb alloys, primarily via partial Nb substitution with Zr, Mo, Si, and other elements to further improve key mechanical properties such as strength, toughness, and oxidation resistance. Zhang et al. [24] investigated the tensile performance and fracture toughness of Ti₂AlNb alloys with varying Al contents. They reported that reduced Al content appears to enhance fracture toughness while maintaining favorable strength and ductility. By comparison, higher Al content slightly improves strength but remarkably impairs ductility and fracture toughness. Appropriate Nb addition is beneficial to room-temperature ductility and high-temperature creep resistance. Germann et al. [25] adjusted Ti and Al contents and incorporated Mo, Si, and Zr as alloying elements. Their findings suggested that Nb doping can strengthen oxide scales and improve oxidation resistance; however, excessively high Nb content (above 15 at.%) weakens oxide scale adhesion and facilitates pore generation. Partial replacement of Nb with Zr, Mo, Si can effectively optimize creep performance without compromising ductility and yield strength. B enables grain refinement and enhances yield strength and room-temperature plasticity, though it may reduce ultimate tensile strength and elongation. Elements such as W, Ta, and Fe exhibit varying degrees of positive effects on strength, toughness, and creep resistance. While V boosts room-temperature ductility, it may degrade strength and oxidation resistance. By comprehensively comparing the composition–performance relationships of various Ti₂AlNb systems, the Ti–22Al–25Nb alloy exhibits the most balanced mechanical properties, a stable microstructure, a mature manufacturing process, and reliable engineering applicability. Compared with other component ratios, it avoids the unilateral performance defects caused by excessive or insufficient single-element content and therefore becomes the most widely adopted and commercially mature composition for high-temperature aero-engine components.

The microstructure of Ti₂AlNb alloys mainly comprises orthorhombic O-phase, body-centered cubic β/B2 phase, and hexagonal close-packed α₂ phase. The morphology, distribution, and volume fraction of these phases largely determine the mechanical properties of the alloy. The β/B2 phase forms the continuous matrix and structural skeleton of the alloy. Featuring numerous slip systems, β and B2 phases primarily accommodation strain during plastic deformation [2]. Nevertheless, ordering reduces atomic mobility, which may limit the overall ductility of the alloy. The α₂ phase possesses an ordered hexagonal close-packed structure (similar to Ti₃Al) and serves as a low-temperature stable phase, precipitating predominantly from the β/B2 phase at moderate and low temperatures. Due to the absence of effective twinning modes, it is generally recognized as a brittle phase, which can adversely affect alloy toughness [1]. In comparison, the O-phase features an ordered orthorhombic structure and acts as the primary strengthening phase of Ti₂AlNb alloy. It delivers superior creep resistance, high-temperature stability, and strengthening effect [26]. The O-phase exhibits favorable crystallographic matching with the B2/β matrix, enabling the formation of low-energy coherent interfaces. Such interfaces effectively hinder dislocation movement and stabilize the microstructure morphology, making the O-phase an essential strengthening constituent in Ti₂AlNb alloys.

DED utilizes a high-energy-density heat source to generate a local molten pool on the substrate surface, while synchronously feeding raw powder into the pool for melting and solidification. Near-net-shape components are directly fabricated through layer-by-layer deposition [27]. DED mainly refers to DLD, whose working principle is illustrated in Figure 1a [28]. The key of this process lies in the precise delivery of metal powder into the laser-induced molten pool via a coaxial nozzle, thus realizing additive manufacturing of parts through successive cladding and deposition [29]. Benefiting from the coaxial powder feeding characteristic, DLD exhibits distinct advantages over conventional powder-bed additive manufacturing: it is free from the constraints of a closed build chamber, enabling the direct fabrication of large-scale complex components such as aero-engine casings and blisks. Moreover, it can be applied to the local repair of in-service parts and the direct deposition of functional structures on curved 3D surfaces, significantly improving the flexibility of Ti₂AlNb alloy components in design, fabrication, and remanufacturing [30,31]. Although DLD offers numerous merits, including high forming efficiency, suitability for large-scale component production, and the capability to deposit multi-material composites and functionally graded structures, it tends to generate considerable residual stress during the forming process, which can lead to defects such as deformation and even cracking in the fabricated parts.

During the DLD fabrication of Ti₂AlNb alloys, core processing parameters, including scanning speed, laser power, and linear energy density, critically modulate the microstructure and mechanical performance of as-deposited alloys via regulating the molten pool’s thermal history and solidification behavior. In general, a higher scanning speed shortens laser-material interaction time, accelerating molten pool cooling and increasing the temperature gradient [13]. This contributes to grain refinement [32] and mitigates elemental segregation, facilitating the formation of uniform, fine acicular O-phase microstructures. However, excessively rapid solidification may induce microcracks in such ordered intermetallic systems and accumulate substantial residual stress owing to sharp temperature gradient variations [33]. As a comprehensive indicator of laser power and scanning speed, linear energy density serves as a key parameter governing the deposition quality, microstructure, and properties of Ti₂AlNb alloys. Insufficient linear energy density prevents full melting of high-melting-point Ti₂AlNb powder, leading to incomplete melting and easily inducing defects such as lack of fusion and porosity, reducing component densification and deteriorating high-temperature mechanical properties. In contrast, excessively elevated linear energy density enlarges the molten pool and causes significant thermal accumulation, resulting in grain coarsening, unbalanced phase constituents, and increased residual stress; in extreme cases, component deformation and cracking may occur. Accordingly, systematic optimization of DLD processing parameters is essential for fabricating complex Ti₂AlNb alloy components to achieve a rational balance between energy input and cooling rate. On the basis of guaranteed forming densification, precise regulation of the precipitation behavior of the B2 matrix and O-phase enables the acquisition of optimized as-deposited microstructure with excellent high-temperature strength, moderate ductility and improved crack propagation resistance. This can satisfy the requirements for long-term stable service of aero-engine high-temperature components under harsh service conditions.

PBF begins by uniformly spreading a thin powder layer on the building platform, then utilizes a high-energy beam (laser or electron beam) to selectively scan and melt powder feedstock in accordance with sliced cross-sectional data acquired from 3D digital models. Once a single layer is finished, a new layer of powder is deposited, and the foregoing procedures are repeated. Through this layer-by-layer stacking, a dense component is finally fabricated [34]. The PBF process mainly includes two categories: SLM and SEBM, whose schematic diagrams are shown in Figure 1 [29,35].

SLM employs a high-power-density laser beam [36] as the heat source and fabricates Ti₂AlNb alloy components via layer-by-layer melting and high-precision forming under the protection of an inert atmosphere such as argon. Benefiting from the fine, focused laser spot and ultra-thin powder-spreading layer thickness, this process enables highly concentrated energy input and precise control over the forming procedure. It can integrally manufacture complex internal flow channels, topologically lightweight structures, thin-walled curved surfaces, and other features that are difficult to produce using conventional processing methods, yielding components with high dimensional accuracy and excellent surface quality [27]. Particularly importantly, the unique rapid melting and solidification behavior inherent to SLM promotes the formation of a fine and uniform microstructure in Ti₂AlNb alloy and achieves a near-full dense forming state, thereby endowing it with excellent and stable comprehensive mechanical properties at both room and elevated temperatures [2]. Owing to the advantages of small molten pool size and high cooling rate, SLM is extremely suitable for fabricating small-sized Ti₂AlNb components with high precision requirements and complex structures. However, its effective forming dimension is usually strictly limited by the build chamber volume of the powder bed [36].

SEBM uses a high-energy electron beam as the heat source, and the entire forming process is conducted in a vacuum environment. Due to the stronger penetration ability of electron beams into powder, SEBM exhibits more prominent technical advantages in the powder-based additive manufacturing of refractory alloy systems [37]. Meanwhile, this process is generally performed at a relatively high preheating temperature with a moderate cooling rate, which effectively reduces the residual stress generated during forming and thus decreases the cracking susceptibility of components, making it especially suitable for preparing the intrinsically brittle Ti₂AlNb alloy [38]. Ti₂AlNb alloy fabricated by SEBM exhibits strength equivalent to that of SLM counterparts, while its ductility and high-temperature service performance are more outstanding. In addition, SEBM is characterized by a high scanning speed, clean vacuum atmosphere, and low thermal stress during forming, which can further suppress deformation and microcrack initiation in components [39,40].

The extreme non-equilibrium thermal cycling environments inherent to different powder-based additive manufacturing processes exert a profound regulatory effect on the microstructure evolution and mechanical performance of Ti₂AlNb intermetallic alloys, representing core scientific issues in the powder-based additive manufacturing of high-temperature structural materials. As a typical ordered intermetallic compound, Ti₂AlNb alloys undergo complex solid-state phase transformations (β→α₂→O) during the heating and cooling cycles of powder-based additive manufacturing. The final phase composition, phase fraction, and distribution characteristics are not randomly generated but precisely controlled by two core thermal parameters: the cooling rate during solidification and subsequent cooling, and the preheating temperature of the substrate or powder bed (Figure 2a–c) [41]. These two parameters directly determine the thermodynamic driving force and kinetic rate of phase transformations, yielding distinct microstructural features in Ti₂AlNb alloys fabricated by different powder-based additive manufacturing processes. This largely accounts for the evident differences in their mechanical properties. As demonstrated by electron backscatter diffraction (EBSD) phase distribution maps (Figure 2a–c), Ti₂AlNb alloys fabricated by SEBM exhibit a typical hierarchical microstructure, consisting of a continuous β-phase (B2 structure, marked in green) as the matrix, with uniformly precipitated lath-like O-phase (orthorhombic structure, marked in red) within the β grains, accompanied by well-defined and coarse β grain boundaries. This unique microstructural characteristic is strongly governed by the thermal cycling characteristics of the SEBM process: SEBM employs high-temperature preheating of the powder bed at 600–1000 °C, which effectively reduces the temperature gradient and thermal stress during forming and extends the molten pool cooling duration. Such thermal conditions provide sufficient thermodynamic support for the stable retention of the β-phase and nucleation and growth of the O-phase. this microstructure, lath-like O-phase efficiently hinders dislocation movement, while the continuous β matrix maintains favorable deformability, establishing a sound microstructural foundation for the excellent high-temperature creep resistance and moderate room-temperature ductility of SEBM-fabricated Ti₂AlNb alloys. In comparison, Ti₂AlNb alloys fabricated by SLM are dominated by a supersaturated β matrix (marked in green) with minimal O-phase content, and the microstructure is characterized by coarse columnar β grains spanning multiple deposited layers with clear and straight grain boundaries. The formation of this microstructure is attributed to the unique thermal cycling of the SLM process: SLM uses a high-energy-density laser beam (power density up to 10⁶ W/cm²) to rapidly melt the powder, resulting in an ultra-high cooling rate (106–108 K/s) during solidification. This extreme non-equilibrium thermal condition significantly inhibits the solid-state phase transformation of β→α₂→O, making the high-temperature β-phase (B2 structure) retained stably to room temperature, forming a supersaturated β matrix. The extremely low content of O-phase and the coarse columnar β grain structure led to the high room-temperature strength but poor ductility of SLM-fabricated Ti₂AlNb alloys, which also makes the material prone to cracking during the forming process.

In contrast to both SEBM and SLM processes, the Ti₂AlNb alloy fabricated by direct laser deposition (DLD) presents a refined triphase coexistence structure, consisting of β/B2 phase (marked in red, volume fraction 23.5%), α₂ phase (marked in yellow, volume fraction 45.0%), and O-phase (marked in blue, volume fraction 31.7%). This distinct microstructural feature is an inevitable result of the moderate thermal cycling of the DLD process: DLD adopts a coaxial powder feeding mode, and the interaction between the laser beam and the powder forms a molten pool with moderate size and cooling rate (10³–10⁵ K/s); at the same time, the layer-by-layer cladding process leads to repeated remelting and reheating of the previously deposited layers, forming a multi-pass thermal cycle. This thermal environment avoids both the phase transformation inhibition and metastable phase retention caused by excessive cooling in SLM, and the excessive grain growth induced by high-temperature preheating in SEBM, thereby realizing the synergistic regulation of β/B2, α₂, and O three phases, and forming a refined microstructure, which is conducive to the improvement of the strength and ductility matching of the alloy. The transmission electron microscopy (TEM) observations (Figure 2d–f) [42,43] further reveal the fine-scale microstructural characteristics and defect evolution of Ti₂AlNb alloys fabricated by different powder-based additive manufacturing processes, which provide direct experimental evidence for the correlation between thermal cycling, microstructure, and mechanical properties. Specifically, the TEM bright-field image of the SEBM-fabricated sample (Figure 2d) shows that there are a large number of high-density dislocations in the β matrix, and these dislocations are pinned and entangled at the interface between the O-phase and the β matrix; the lath-like O-phase is uniformly embedded in the β matrix, forming a composite strengthening mechanism of dislocation strengthening and second-phase strengthening. As shown in Figure 2e, during the SLM process, the sub-grain boundaries formed by dislocation rearrangement serve as low-energy nucleation sites for the O-phase, promoting its directional growth along dislocation slip directions and generating a feathery bundle morphology. In contrast, Ti₂AlNb alloys fabricated via DLD possess distinctly different dislocation configurations, mainly classified into two typical morphologies: curved and entangled dislocation loops, and oriented dislocation walls consisting of straight dislocations (Figure 2f). The coexistence of these two dislocation structures implies that the DLD alloy can activate more dislocation slip systems during deformation, delivering improved plastic deformability while retaining high strength.

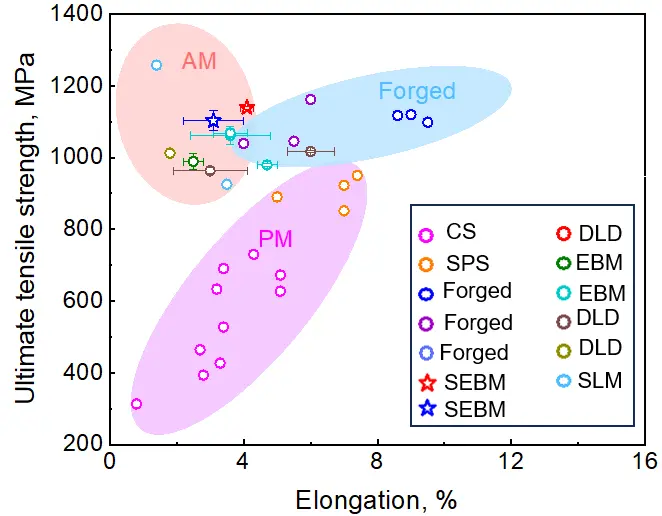

Figure 3 systematically compares the room-temperature tensile properties of Ti₂AlNb alloys fabricated via diverse manufacturing routes, including powder-based additive manufacturing, conventional forging, and powder metallurgy (PM) [44]. Data from the literature for comparison were also listed in Table 1. The results reveal distinct performance windows for different processing routes. Specifically, powder-based additive manufacturing of Ti₂AlNb alloys (SLM, SEBM, LMD) presents a high-strength yet low ductility: the ultimate tensile strength (UTS) ranges from 900 to 1250 MPa, while the elongation is maintained at merely 2–8%. Among these processes, SEBM-fabricated samples achieve superior strength-ductility synergy. This improvement stems from the unique hierarchical β+O lath microstructure formed at high temperatures, which well balances fine subgrain strengthening and residual stress relaxation. By contrast, conventionally forged Ti₂AlNb alloys deliver excellent comprehensive performance, with high strength (1050–1150 MPa) and exceptional ductility (8–16%). Such excellent properties benefit from intense thermomechanical deformation during forging, which refines grain structures, removes internal defects, and promotes microstructure homogenization. However, the industrial application of forged Ti₂AlNb is significantly constrained by high cost, low material yield, and difficulty in net-shaping complex components. On the other hand, powder metallurgy (PM) routes, such as cold sintering (CS) and spark plasma sintering (SPS), generally result in relatively low UTS (300–950 MPa) and moderate ductility. This performance limitation primarily originates from inherent porosity and insufficient densification in PM-derived microstructures, which act as stress concentration centers and preferential crack initiation sites, seriously weakening the mechanical performance.

Collectively, this comparison results fully demonstrate that fabrication route dominates the microstructure, defects, and phase distribution, thereby determining the final mechanical performance of Ti₂AlNb alloys. Each processing route has its own inherent merits and limitations: forging excels in comprehensive mechanical properties but lacks forming flexibility; powder metallurgy offers low cost but suffers from poor strength; and powder-based additive manufacturing offers unparalleled advantages for fabricating complex, customized components but is restricted by lower ductility compared with forged counterparts. Notably, powder-based additive manufacturing, in particular SEBM, shows considerable promise for producing high-performance, complex Ti₂AlNb components that are not feasible via conventional routes. Future research could focus on process parameter optimization and rational post-heat treatments to enhance the ductility of additively manufactured alloys, reduce the performance disparity relative to forged counterparts, and support the practical large-scale application of powder-based additive manufacturing Ti₂AlNb alloys in aero-engine hot-end components.

Compared with conventional forging and powder metallurgy routes, powder-based additive manufacturing technologies offer unique technical advantages for industrial applications, including the integrated forming of complex structural components, shorter manufacturing cycles, higher material utilization, and greater adaptability to customized production and rapid manufacturing iteration. However, several practical challenges remain for industrial implementation, such as low forming efficiency, high equipment and raw material costs, limited process stability and reproducibility, as well as imperfect industrial specifications and quality certification systems. These differentiated advantages and constraints suggest that each manufacturing route has its suitable application scope and technical limitations. The current limitations of powder-based additive manufacturing may, to some extent, restrict its large-scale and standardized engineering applications, indicating that it cannot yet fully replace traditional processing methods in the mass production of Ti₂AlNb alloy components.

During the layer-by-layer deposition process of powder-based additive manufacturing of Ti₂AlNb alloys, the material experiences repeated rapid melting and solidification cycles. This non-equilibrium thermal process can generate a steep temperature gradient inside the component, which in turn induces thermal stress that may accumulate progressively. When the accumulated thermal stress exceeds the tensile strength limit of the Ti₂AlNb alloy, microcracks initiate inside the component. These initial microcracks do not disappear spontaneously; instead, during subsequent thermal cycles in powder-based additive manufacturing and under applied loads after forming, they propagate and extend continuously, eventually forming macroscopic thermal cracks visible to the naked eye. This severely compromises the structural integrity and mechanical properties of the component [54], as shown in Figure 4a [41].

The hot cracking susceptibility of the Ti₂AlNb alloy is not solely intrinsic; it is influenced by multiple factors. Among them, the setting of powder-based additive manufacturing process parameters and the substrate preheating temperature are among the most critical influencing factors. In addition, the geometry of the component and the protective atmosphere during forming also affect the formation of thermal cracks. At present, several strategies have been developed to control thermal cracks during the powder-based additive manufacturing of Ti₂AlNb alloy, mainly including optimization of the base material composition, precise regulation of powder-based additive manufacturing process parameters, and preheating treatment before forming [55]. Taking laser additive manufacturing as an example, within a suitable process window, appropriately increasing the laser power or reducing the scanning speed can increase the energy input and the molten pool residence time, and reduce the temperature gradient within the component, thereby decreasing the number of cracks and suppressing the material’s cracking tendency. The comparative experimental results from SLM-fabricated Ti–22Al–25Nb alloys illustrate such parameter-dependent performance variation [56]. Excessively low scanning speed (0.4 m/s) induces excessively high energy density, generating abundant pore defects and resulting in moderate mechanical properties (YS of 933 MPa, UTS of 939 MPa, EL of 12%). In comparison, excessively high scanning speed (1.2 m/s) produces insufficient energy density of only 32.41 J/mm³, which triggers severe lack-of-fusion defects and causes more significant performance deterioration (YS of 862 MPa, UTS of 898 MPa, EL of 4%). In contrast, the medium scanning speed range of 0.6–0.8 m/s provides matched energy input, effectively suppressing internal defects and achieving a relative density above 99%. This optimal parameter window exhibits tunable performance characteristics: a relatively low speed of 0.6 m/s favors ductility, with a maximum elongation of 15%, whereas a slightly higher speed of 0.8 m/s improves strength, delivering YS of 982 MPa and UTS of 989 MPa. Such performance differences suggest that rational scanning speed can help achieve superior strength–ductility synergy [56]. Furthermore, substrate preheating serves as a useful complementary strategy. It reduces the thermal gradient during forming, alleviates rapid accumulation of thermal stress, and restrains the initiation and propagation of thermal cracks, thereby further improving the overall forming quality of the component.

Lack of fusion is another typical processing defect in the powder-based additive manufacturing of Ti₂AlNb alloy. It typically exhibits a flat or elongated morphology, mainly distributed along the interfaces between adjacent melt tracks or interlayer boundaries of successive deposited layers. The defect edges are generally smooth, and unmelted residual particles can often be observed inside the defect. Such defects severely break the metallurgical bonding continuity inside the component, causing a drastic deterioration of its mechanical properties and even premature service failure, as shown in Figure 4b [4]. The essential cause of lack of fusion defects is insufficient energy input during powder-based additive manufacturing, which fails to fully melt the deposited material, or inappropriate scanning strategies that lead to poor overlapping between adjacent melt tracks and deposited layers, failing to form effective metallurgical bonding.

Based on the forming characteristics of Ti₂AlNb alloy and the inherent features of powder-based additive manufacturing processes, the formation of lack-of-fusion defects can be mainly attributed to the following three typical scenarios: First, an excessively low linear energy density, indicating that the energy input from the heat source is inadequate to endow the molten pool with sufficient volume and superheat temperature. This fails to achieve full melting of the current deposited layer and the surface metal of the previous layer, causing cold bonding between adjacent layers and eventually resulting in interlayer lack of fusion. Second, an overlarge hatch spacing results in insufficient overlap between adjacent melt tracks. Unmelted regions remain in the gaps between tracks, forming inter-track lack of fusion. Third, a powder layer thickness exceeding the effective penetration depth of the heat source, which leaves the underlying substrate material partially unmelted. This phenomenon is more pronounced in SEBM and high-deposition-rate DLD processes, and exhibits a high tendency to induce interlayer lack-of-fusion defects [57].

Unlike other metallurgical defects, such as hot cracks and porosity, once formed, lack-of-fusion defects are more difficult to eliminate through conventional post-processing methods. Hot isostatic pressing (HIP), although a commonly used and effective post-processing technique, has shown certain success in improving the densification of additively manufactured components and mitigating some metallurgical defects. However, its effectiveness against lack-of-fusion defects remains limited. HIP can only achieve localized and partial densification, struggling to repair the incomplete metallurgical bonding interface in the unfused region or eliminate the inherent interlayer and inter-track interfacial gaps. Therefore, the prevention and active control of lack-of-fusion defects should primarily rely on targeted strategies during the forming process. Current mainstream control measures include: appropriately matching laser or electron beam power with scanning speed to achieve a suitable linear energy density and ensure complete melting of the material; optimizing hatch spacing and powder layer thickness to ensure adequate overlap between adjacent melt tracks and deposited layers; and integrating real-time molten pool monitoring systems to identify, provide feedback on, and regulate abnormal conditions during the forming process, thereby adjusting process parameters dynamically, and fundamentally reducing the formation of lack-of-fusion defects.

Porosity is a common metallurgical defect in powder-based additive manufacturing of Ti₂AlNb alloys. It can reduce and undermine the densification of the internal microstructure, compromising strength, toughness, and fatigue properties, and may even induce other secondary defects in severe cases, as shown in Figure 4c [4,58]. Based on their formation mechanisms, porosity can be categorized into two categories: metallurgical porosity and process-induced porosity. These two types differ in their origins and morphological characteristics, but both can adversely affect forming quality and service performance.

During the rapid forming process of powder-based additive manufacturing, the molten pool is at a high temperature and in an unstable state. The drastic thermal fluctuations induced by rapid melting and solidification can trigger severe fluid flow instability of the molten pool, resulting in violent fluctuations on the molten pool surface. In this case, the inert gas (such as argon) used to protect the molten pool during forming is easily entrapped by the flowing liquid metal and eventually encapsulated inside the component after solidification, forming process-induced porosity. Simultaneously, under high-temperature conditions, gases such as hydrogen and nitrogen from the ambient atmosphere and residual gases in the fabrication system dissolve extensively into the high-temperature molten pool. Given the extremely high cooling rate during powder-based additive manufacturing of the Ti₂AlNb alloy, the solubility of gases in the metal decreases rapidly as the molten pool temperature drops sharply. These supersaturated gases cannot precipitate and escape from the solidification interface in time, and are ultimately trapped by the solidified metal, forming metallurgical porosity [55].

Relevant research results show that the formation of porosity in the powder-based additive manufacturing of Ti₂AlNb alloy is associated with the keyhole depression phenomenon and the setting of powder-based additive manufacturing process parameters. Core process parameters, including laser power, scanning speed, and powder layer thickness, directly regulate the temperature field distribution, solidification rate, and melt flow behavior of the molten pool, thereby determining the keyhole stability, melt flow pattern, and bubble escape window size. These parameters ultimately play a decisive role in the type, quantity, size, and spatial distribution of pores. Therefore, establishing and optimizing the process window of powder-based additive manufacturing through systematic experimental investigations, mitigating keyhole fluctuation and collapse, prolonging bubble escape time, and facilitating sufficient precipitation and escape of supersaturated gases in the molten pool constitutes a key technical approach to reduce porosity defects and enhance the densification of additively manufactured Ti₂AlNb alloy components [55].

To objectively and critically clarify the potential for actual application and the core technical bottlenecks of the Ti₂AlNb alloy, this study focuses on the regulatory effect of powder-based additive manufacturing on the alloy’s microstructure and mechanical properties. Based on a comprehensive analysis of experimental results and related mechanisms, the key conclusions and future development directions of additively manufactured Ti₂AlNb alloy are summarized as follows:
